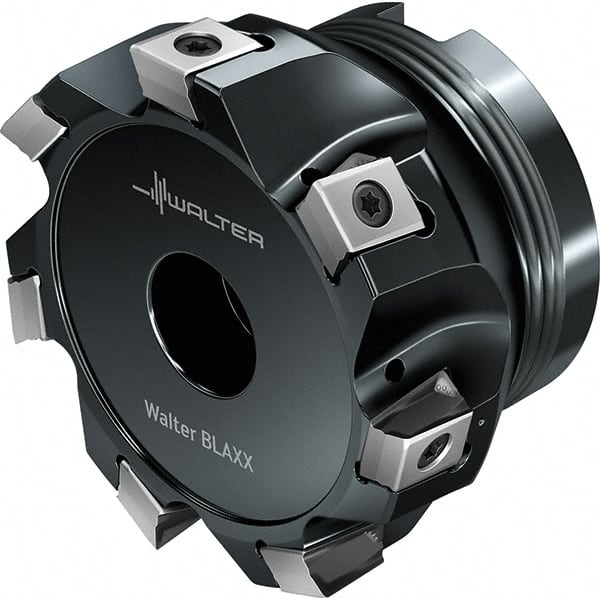

Walter - 6 Inserts, 101.6mm Cut Diam, 38.1mm Arbor Diam, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 50.01mm High, Series F5241-UB1-LN16
Item #: 30393805
Brand: Walter
Model #: 6865139
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 101.60 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 0 |
| Overall Height (mm) | 50.01 |
| Overall Height (Decimal Inch) | 1.9690 |
| Series | F5241-UB1-LN16 |
| Through Coolant | No |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Number of Flutes | 6 |
| Maximum RPM | 14100 |
| Cutting Edge Length (Decimal Inch) | 0.5910 |
| Toolholder Material | Steel |
