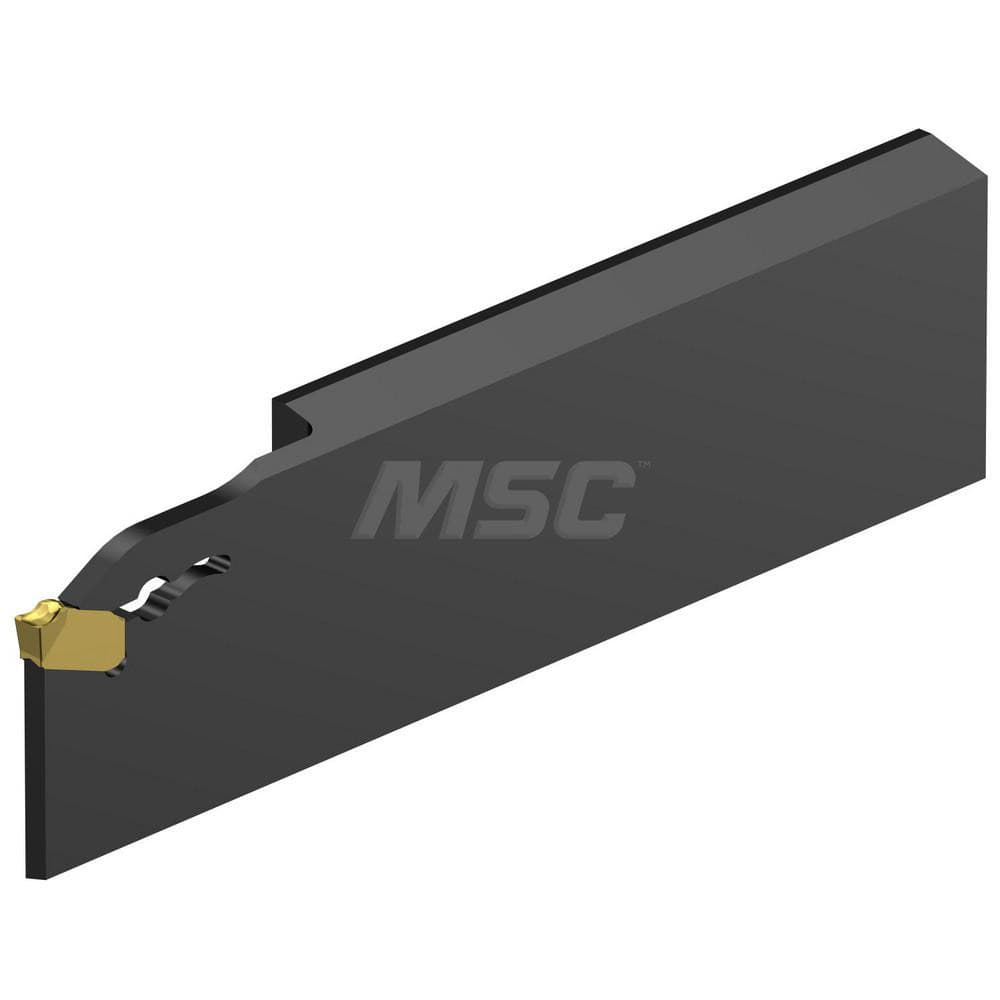

Indexable Cut-Off Blades; End Type: Single; Cutting Direction: Right Hand; Hand: Right Hand; Blade Height (mm): 31.90; Blade Height (Decimal Inch): 1.2560; Blade Width (Decimal Inch): 0.3278; Blade Width (mm): 8.32; Blade Overall Length (Decimal Inch): 4.
Item #: 30433122
Brand: Sandvik Coromant
Model #: 6976174
Product Specifications
| End Type | Single |
| Cutting Direction | Right Hand |
| Hand | Right Hand |
| Blade Height (mm) | 31.90 |
| Blade Height (Decimal Inch) | 1.2560 |
| Blade Width (Decimal Inch) | 0.3278 |
| Blade Width (mm) | 8.32 |
| Blade Overall Length (Decimal Inch) | 4.3307 |
| Blade Overall Length (mm) | 110.00 |
| Blade Style | QD-LR |
| Compatible Insert Style | QD-NG-0300-0002-CM |
| Compatible Insert Size Code | G |
| Insert Holding Method | Clamp |
| Series | Corocut QD |
| Insert Style | QD-LG; QD-NG; QD-RG |
| Cutting Tool Application | Parting |
| Insert Width (mm) | 3.00 |
| Insert Seat Size | G |
| Maximum Depth of Cut (mm) | 33.00 |
| Cutting Height (mm) | 33.00 |
| Minimum Insert Width (mm) | 3.00 |
