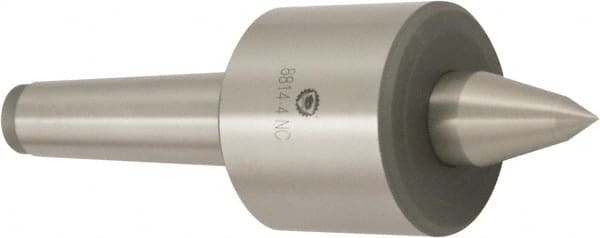

Bison - MT5 Morse Taper Shank, 95mm Head Diam, Live Center - 6,000 Max RPM, 40mm Point Diam, 2.66" Point Len, 4,410 Lb Max Workpc, Long Point
Item #: 30520423
Brand: Bison
Model #: 7-566-005
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Morse Taper |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 4410.00 |
| Maximum Workpiece Weight (kg) | 2000.00 |
| Point Style | Long |
| Point Diameter (mm) | 40.00 |
| Point Diameter (Decimal Inch) | 1.5740 |
| Tip Diameter (mm) | 16.00 |
| Tip Diameter (Decimal Inch) | 0.6299 |
| Point Length (Decimal Inch) | 2.6600 |
| Accuracy (Decimal Inch) | 0.000100 |
| Head Diameter (mm) | 95.00 |
| Head Diameter (Decimal Inch) | 3.7400 |
| Maximum RPM | 6000 |
