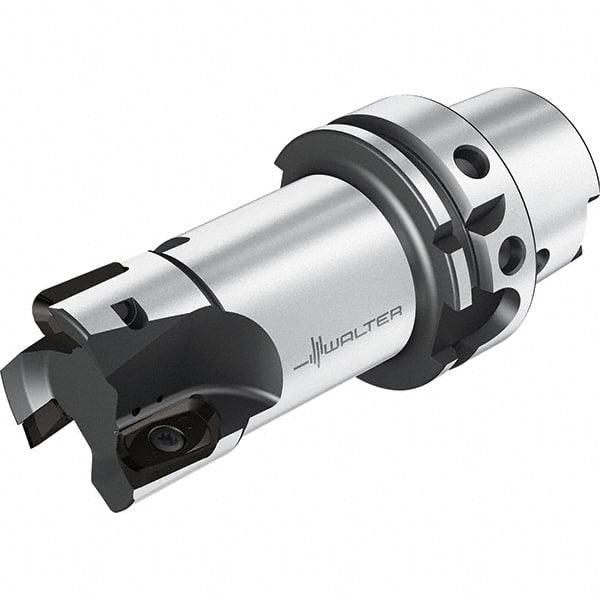

Walter - 25mm Cut Diam, 15mm Max Depth of Cut, 141.9mm OAL, Indexable Square Shoulder End Mill - HSK63A Taper Shank, 0° Lead Angle, Through Coolant, Series M2131-H
Item #: 30562417
Brand: Walter
Model #: 6836955
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9840 |
| Shank Type | Taper Shank |
| Shank Taper Size | HSK63A |
| Overall Length/Projection (mm) | 141.90 |
| Overall Length/Projection (Decimal Inch) | 5.5870 |
| Lead Angle | 0 |
| Series | M2131-H |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.591 |
| Number of Cutter Inserts | 2 |
| Number of Flutes | 2 |
| Maximum RPM | 33700 |
| Toolholder Material | Steel |
