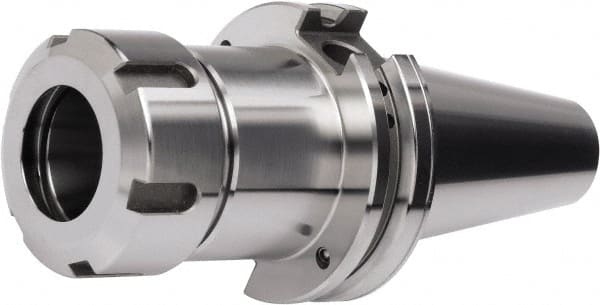

Accupro - 0.019" to 13/32" Capacity, 3-1/2" Projection, CAT40 Dual Contact Taper, ER16 Collet Chuck - 6-3/16" OAL
Item #: 30577365
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Dual Contact Taper |
| Taper Size | CAT40 |
| Projection (Inch) | 3-1/2 |
| Projection (Decimal Inch) | 3.5000 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0190 |
| Minimum Collet Capacity (mm) | 0.48 |
| Maximum Collet Capacity (mm) | 10.31 |
| Maximum Collet Capacity (Inch) | 13/32 |
| Maximum Collet Capacity (Decimal Inch) | 0.3930 |
| Overall Length (Inch) | 6-3/16 |
| Type | ER Collet |
| Shank Length (Inch) | 2-11/16 |
| Nose Diameter (mm) | 32.00 |
| Nose Diameter (Decimal Inch) | 1.2600 |
| Maximum RPM | 30000 |
| Hex Diameter (mm) | 32.00 |
| Hex Diameter (Decimal Inch) | 1.2600 |
| PSC Code | 5136 |
| Balanced to (RPM) | 30000 |
| TIR (Decimal Inch) | 0.0003 |
| TIR (mm) | 0.0070 |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (Decimal Inch) | 1.2600 |
| Collet Nut Diameter (mm) | 32.00 |
