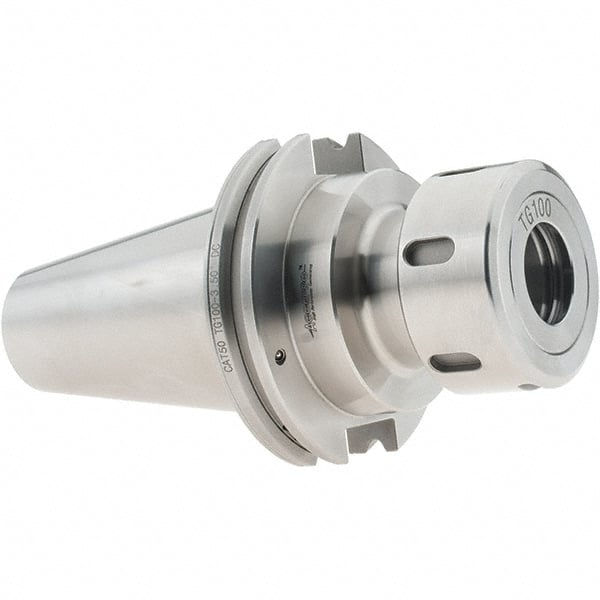

Accupro - 3/64" to 1" Capacity, 3-1/2" Projection, CAT50 Dual Contact Taper, TG/PG 100 Collet Chuck - 7-1/2" OAL
Item #: 30577423
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Single Angle |
| Collet Series | TG/PG 100 |
| Shank Type | Dual Contact Taper |
| Taper Size | CAT50 |
| Projection (Inch) | 3-1/2 |
| Projection (Decimal Inch) | 3.5000 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Inch) | 3/64 |
| Minimum Collet Capacity (Decimal Inch) | 0.0460 |
| Minimum Collet Capacity (mm) | 1.19 |
| Maximum Collet Capacity (mm) | 25.40 |
| Maximum Collet Capacity (Inch) | 1 |
| Maximum Collet Capacity (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 7-1/2 |
| Nut Tightening Torque (Ft/Lb) | 60.000 |
| Type | Cat V-Flange Single Angle |
| Shank Length (Inch) | 4 |
| Nose Diameter (mm) | 63.50 |
| Nose Diameter (Inch) | 2-1/2 |
| Maximum RPM | 15000 |
| Hex Diameter (Inch) | 2-1/2 |
| PSC Code | 5136 |
| Balanced to (RPM) | 15000 |
| TIR (Decimal Inch) | 0.0006 |
| TIR (mm) | 0.0150 |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (Decimal Inch) | 2.5000 |
