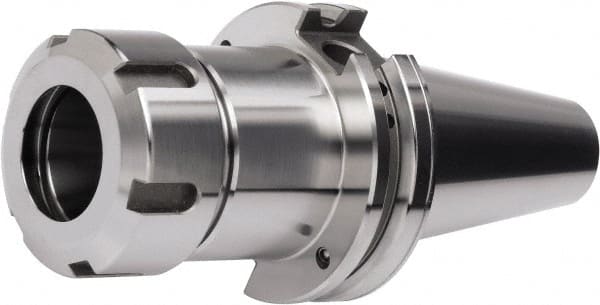

Accupro - 1.98mm to 19.98mm Capacity, 5" Projection, CAT40 Dual Contact Taper, ER32 Collet Chuck - 7-11/16" OAL
Item #: 30577464
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Dual Contact Taper |
| Taper Size | CAT40 |
| Projection (Inch) | 5 |
| Projection (Decimal Inch) | 5.0000 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Inch) | 5/64 |
| Minimum Collet Capacity (Decimal Inch) | 0.0780 |
| Minimum Collet Capacity (mm) | 1.98 |
| Maximum Collet Capacity (mm) | 19.98 |
| Maximum Collet Capacity (Decimal Inch) | 0.7870 |
| Overall Length (Inch) | 7-11/16 |
| Type | ER Collet |
| Shank Length (Inch) | 2-11/16 |
| Nose Diameter (Decimal Inch) | 1.9700 |
| Maximum RPM | 30000 |
| Hex Diameter (Decimal Inch) | 1.9700 |
| PSC Code | 5136 |
| Balanced to (RPM) | 30000 |
| TIR (Decimal Inch) | 0.0003 |
| TIR (mm) | 0.0070 |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (Decimal Inch) | 1.9700 |
