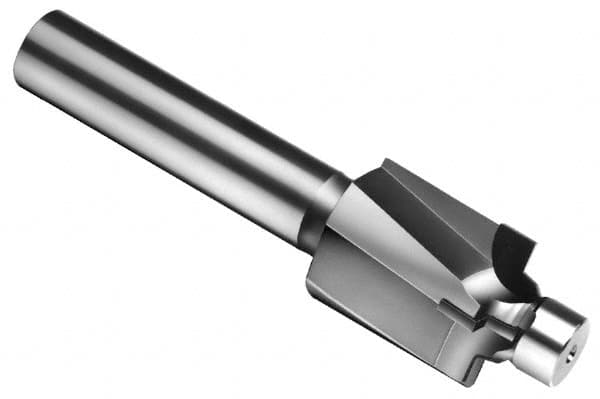

Made in USA - 7/8-14" Port, 1.364" Spotface Diam, 5/8" Tube Outside Diam, Plain Pilot, Straight Shank, Carbide Tipped Porting Tool
Item #: 00390302
Brand: Made in USA
Model #:
Features and Benefits
Carbide-tipped cuts faster than high speed steel. It is commonly used on ferrous and nonferrous materials including cast iron, steel and steel alloys.
| Product Specifications | |
|---|---|
| Port Standard Designation | MS 16142 |
| Pilot Type | Plain |
| Port Thread Size (Inch) | 7/8-14 |
| Tool Material | Carbide-Tipped |
| Tube Outside Diameter Compatibility (Inch) | 5/8 |
| Minimum Pilot Diameter (Decimal Inch) | 0.8010 |
| Spotface Diameter (Decimal Inch) | 1.3640 |
| ShankType | Straight |
| Identification Groove | No |
| Workpiece Compatibility | Tubes |
| Finish/Coating | Bright |
| Overall Length (Inch) | 3-31/32 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Seal Angle | 15 |
| Thread Type | Straight |
| Number of Flutes | 4 |
