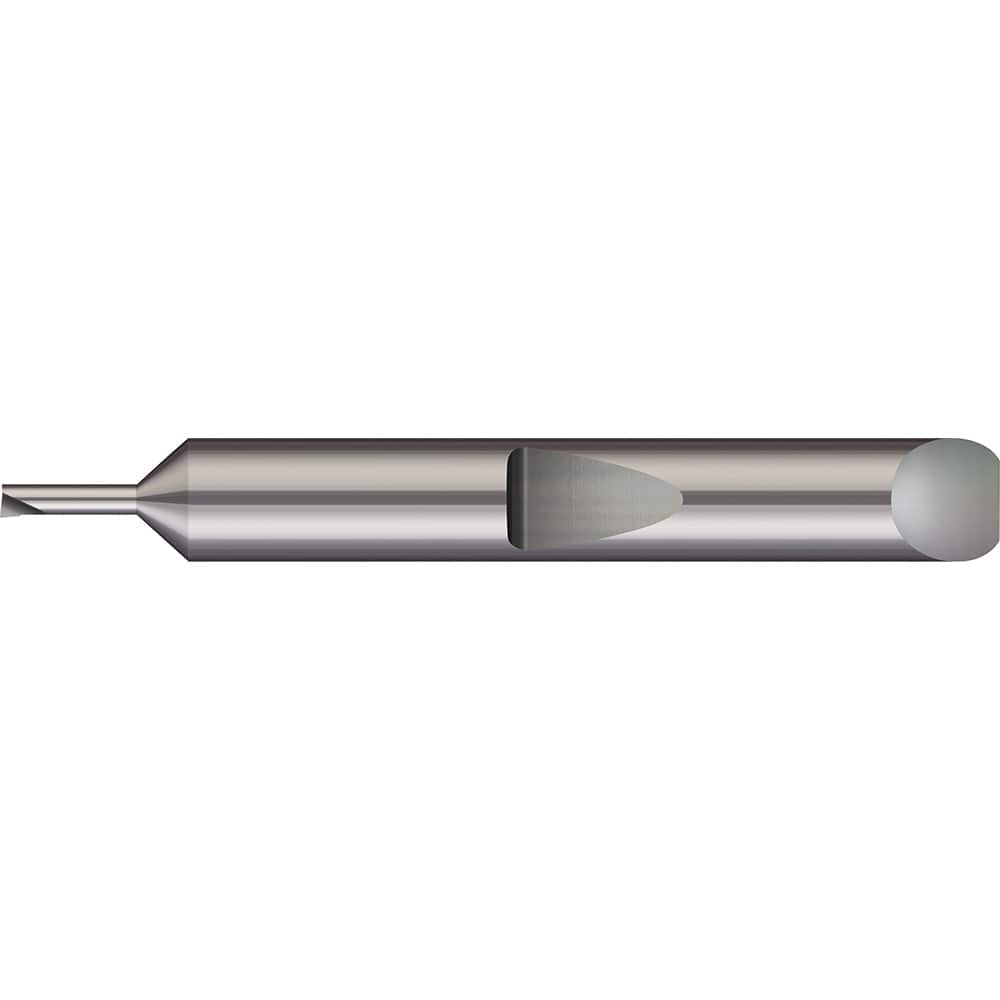

Micro Boring Bar: 0.0315″ Min Bore, 0.15″ Max Depth, Right Hand Cut, Solid Carbide 3/16″ Shank Dia, 1-1/2″ OAL
Item #: 30635544
Brand: Micro 100
Model #: QMBB-035150
Product Specifications
| Boring Bar Type | Micro Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.0315 |
| Minimum Bore Diameter (mm) | 0.80 |
| Material | Solid Carbide |
| Maximum Bore Depth (Decimal Inch) | 0.1500 |
| Shank Diameter (Decimal Inch) | 3/16 |
| Overall Length (Inch) | 1-1/2 |
| Finish Coating | Uncoated |
| Offset (Decimal Inch) | 0.0175 |
| Overall Length (Decimal Inch) | 1.5000 |
