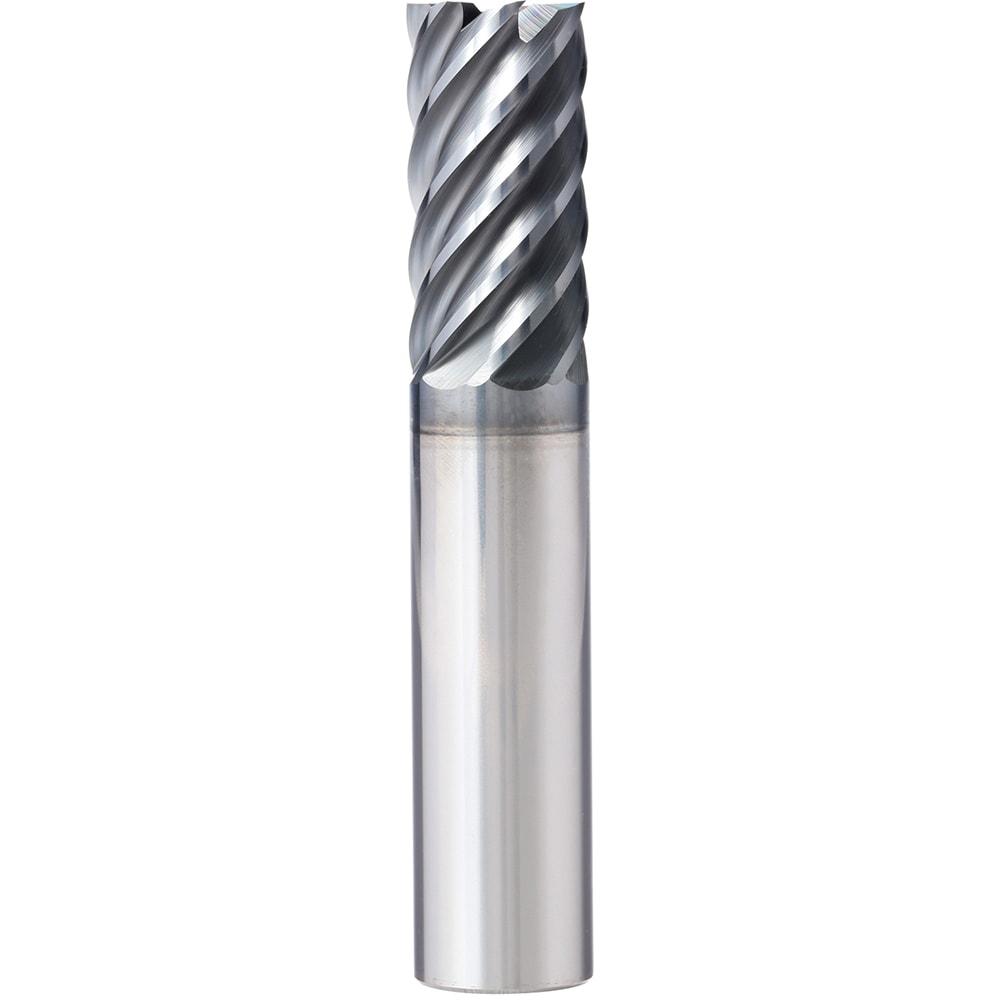

Corner Radius End Mill: 3/8" Dia, 9/16" LOC, 45 deg Helix, AlCrN Coated, Corner Radius End, Centercutting Series SM7F
Item #: 48189401
Brand: Supermill
Model #: SM7F375S-015
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number Of Flutes | 7 |
| Length of Cut (Inch) | 9/16 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlCrN |
| Overall Length (Inch) | 2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0150 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Close |
| Overall Length (Decimal Inch) | 2.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5625 |
| Length Type | Short |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 3/8 |
| Primary Workpiece Material | Superalloys & Titanium |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | S |
| Material Grade | Micrograin |
| Series | SM7F |
| Material Application | Superalloys & Titanium |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Helix Style | High |
| Manufacturers Catalog Number | SM7F |
