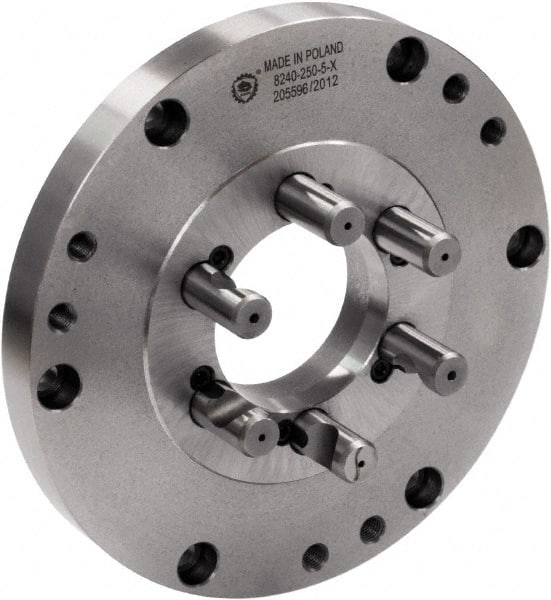

Bison - Adapter Back Plate for 5" Diam Self Centering Lathe Chucks - D1-3 Mount, 2.0236" Through Hole Diam, 4.9213" OD, 0.1378" Flange Height, Cast Iron
Item #: 30651517
Brand: Bison
Model #: 7-878-053F
Exact Tooling IR#: 04
Features and Benefits
Cast iron offers good vibration, resistance, good wear resistance and machinability. It is heavier and more economical than steel.
| Product Specifications | |
|---|---|
| Nominal Chuck Size | 5 |
| Spindle Nose Type | D Series |
| Mount | D1-3 |
| Chuck Compatibility | Self-Centering Chucks |
| Through-Hole Diameter (Decimal Inch) | 2.0236 |
| Chuck Diameter Compatibility (Inch) | 5 |
| Chuck Diameter Compatibility (Decimal Inch) | 5.0000 |
| Outside Diameter (Decimal Inch) | 4.9213 |
| Flange Height (Decimal Inch) | 0.1378 |
| Material | Cast Iron |
