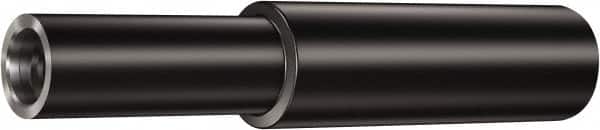

Sandvik Coromant - Coromant EH 1/2" Straight Shank Milling Tip Insert Holder & Shank - 1/4" Projection, 0.362" Neck Diam, E10 Neck Thread, 9.15mm Nose Diam, 2" OAL, Steel AExx-Axx..SS Tool Holder
Item #: 30692099
Brand: Sandvik Coromant
Model #: 5721467
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | Coromant EH |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5 |
| Projection (Inch) | 1/4 |
| Projection (Decimal Inch) | 0.2500 |
| Neck Diameter (Decimal Inch) | 0.3602 |
| Neck Thread Size | E10 |
| Nose Diameter (mm) | 9.15 |
| Nose Diameter (Decimal Inch) | 0.3602 |
| Toolholder Material | Steel |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 0.2500 |
| Effective Length (mm) | 6.35 |
| Maximum Diameter (mm) | 9.15 |
| Maximum Diameter (Decimal Inch) | 0.3602 |
| Shank Material | Steel |
| Shank Shape | Round |
| Thread Size Connection to Tip | E10 |
| Toolholder Style | AExx-Axx..SS |
