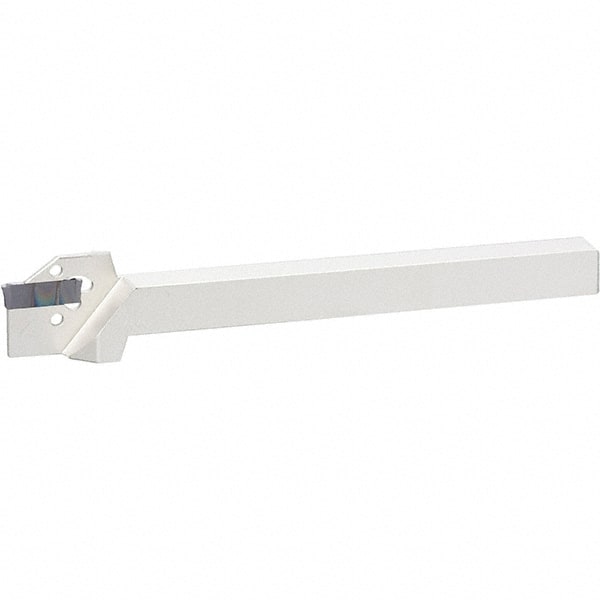

Iscar - External Thread, 4.8mm Min Groove Width, 150mm OAL, Left Hand Indexable Grooving Cutoff Toolholder - 25mm Shank Height x 25mm Shank Width, DG.. Insert Style, DGT Toolholder Style, Series Do-Grip
Item #: 30705263
Brand: Iscar
Model #: 2301331
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Minimum Groove Width (Decimal Inch) | 0.1890 |
| Minimum Groove Width (mm) | 4.80 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Maximum Groove Width (mm) | 5.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Overall Length (mm) | 150.00 |
| Series | Do-Grip |
| Toolholder Style | DGT |
| Insert Compatibility | DG.. |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Head Length (mm) | 33.00 |
| Head Length (Decimal Inch) | 1.2992 |
| Shank Length (Decimal Inch) | 4.6063 |
| Shank Length (mm) | 117.00 |
| Complete Insert Compatibility | DGL 5003C-4D; DGL 5003J-4D; DGN 4803C; DGN 4803J; DGN 5003C; DGN 5003J; DGN 5003JT; DGN 5003UT; DGR 4800CS-4D; DGR 4800CS-8D; DGR 4800JS-4D; DGR 4800JS-8D; DGR 4803C-4D; DGR 4803C-8D; DGR 4803J-4D; DGR 4803J-8D |
