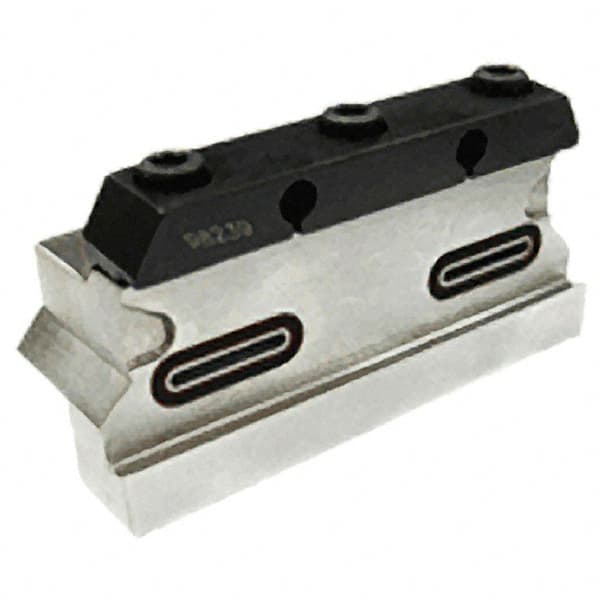

Iscar - Tool Block Style TGTBU, 32mm Blade Height, 100mm OAL, 51.4mm OAH, Indexable Cutoff Blade Tool Block - 20mm Shank Height, 19mm Shank Width, Through Coolant, Series JetHPLine
Item #: 30705370
Brand: Iscar
Model #: 2302493
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tool Block Style | TGTBU |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Height (mm) | 51.40 |
| Overall Height (Decimal Inch) | 2.0236 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width (mm) | 19.00 |
| Shank Width (Decimal Inch) | 0.7480 |
| Through Coolant | Through Coolant |
| Reversible | No |
| Modular | No |
| Series | JetHPLine |
| Overall Width (mm) | 39.20 |
| Overall Width (Decimal Inch) | 1.5433 |
| Complete Blade Compatibility | TGFH 32C-3-JHP; TGFH 32C-4-JHP; TGFH 32C-5-JHP; TGFH 32C-6-JHP |
| Shoulder Height (Decimal Inch) | 0.5906 |
| Complete Insert Compatibility | TGFH 32C-3-JHP; TGFH 32C-4-JHP; TGFH 32C-5-JHP; TGFH 32C-6-JHP |
