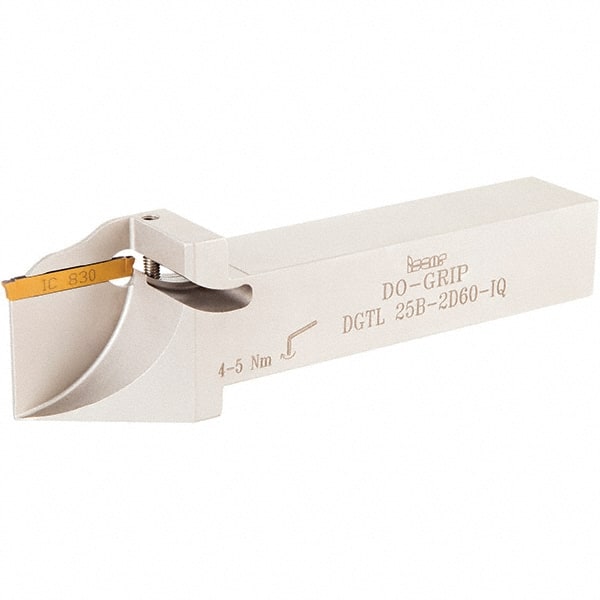

Iscar - External Thread, 5-29/32" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 3/4" Shank Height x 3/4" Shank Width, DGN Insert Style, DGT Toolholder Style, Series Do-Grip
Item #: 30705560
Brand: Iscar
Model #: 2302852
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Groove Width (Decimal Inch) | 0.0790 |
| Overall Length (Decimal Inch) | 5.9060 |
| Series | Do-Grip |
| Toolholder Style | DGT |
| Insert Compatibility | DGN |
| Shank Height (Decimal Inch) | 0.7520 |
| Shank Width/Diameter (Decimal Inch) | 0.7520 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7200 |
| Head Length (Decimal Inch) | 1.6300 |
| Shank Length (Decimal Inch) | 4.2760 |
| Complete Insert Compatibility | DGN 2002C-XL; DGN 2002J-XL |
