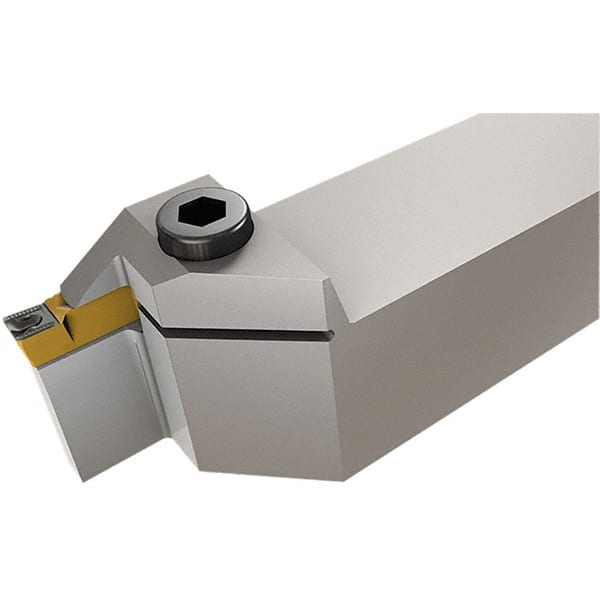

Iscar - HELI, External, Left Hand, 12mm Max Depth of Cut, 6 to 6.35mm Groove Width, Indexable Grooving Tool Holder - DG.., GRIP Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 135mm OAL
Item #: 30705958
Brand: Iscar
Model #: 2500439
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 12.00 |
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Minimum Groove Width (mm) | 6.00 |
| Maximum Groove Width (mm) | 6.35 |
| Maximum Groove Width (Decimal Inch) | 0.2500 |
| Overall Length (mm) | 135.00 |
| Overall Length (Decimal Inch) | 5.3150 |
| Toolholder Style | HELI |
| Insert Compatibility | DG..; GRIP |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | Heli-Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Profiling; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 22.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8819 |
| Head Length (mm) | 29.00 |
| Head Length (Decimal Inch) | 1.1417 |
| Shank Length (mm) | 106.00 |
| Shank Length (Decimal Inch) | 4.1732 |
| Complete Insert Compatibility | DGL 6303C-4D; DGN 6303C; DGN 6303J; DGN 6303JT; DGR 6303C-4D; GRIP 6005Y; GRIP 6008Y; GRIP 6030Y; GRIP 635-080Y; GRIP 635-318Y |
