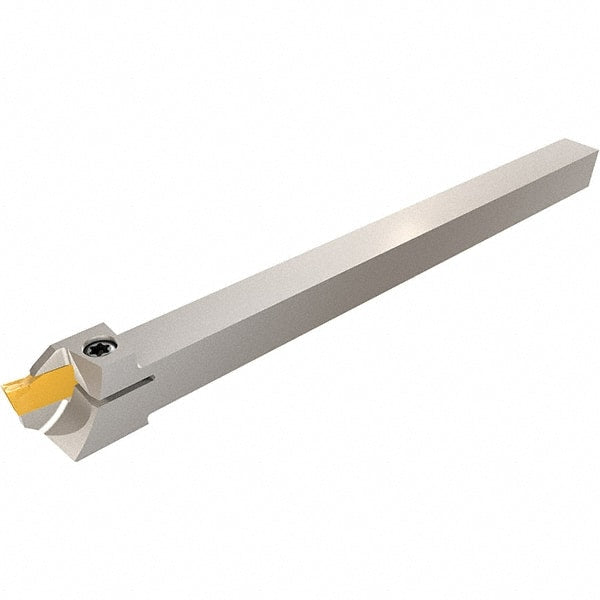

Iscar - PHS, External, Left Hand, 3/32 to 1/8" Groove Width, Indexable Grooving Tool Holder - GDMW 2.4 Insert Compatibility, 0.394" Shank Height, 0.394" Shank Width, 5-29/32" OAL
Item #: 30706246
Brand: Iscar
Model #: 2800727
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Minimum Groove Width (Decimal Inch) | 0.0940 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 5.9060 |
| Toolholder Style | PHS |
| Insert Compatibility | GDMW 2.4 |
| Shank Height (Decimal Inch) | 0.3940 |
| Shank Width/Diameter (Decimal Inch) | 0.3940 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Profiling; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3100 |
| Head Length (Decimal Inch) | 0.7100 |
| Shank Length (Decimal Inch) | 5.1960 |
| Complete Insert Compatibility | GDMW 2.4 |
