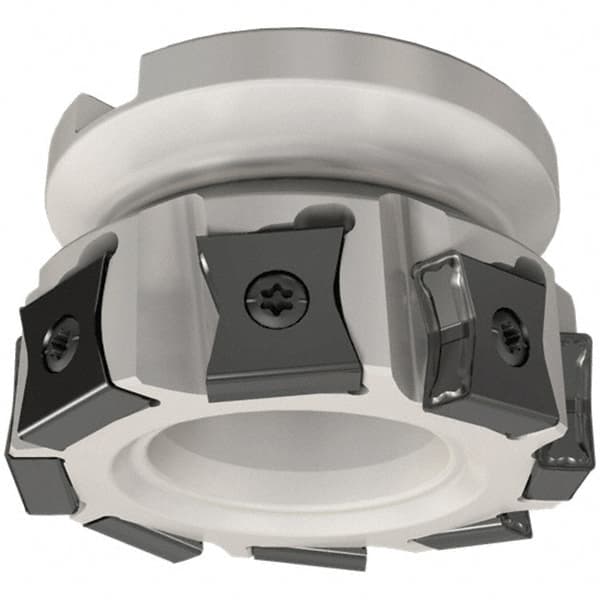

Iscar - 25 Inserts, 200mm Cut Diam, 60mm Arbor Diam, 14mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 63mm High, LN.. 1506.. Insert Compatibility, Series TangMill
Item #: 30707327
Brand: Iscar
Model #: 3102215
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 200.00 |
| Cutting Diameter (Decimal Inch) | 7.8740 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Lead Angle | 0 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | LN.. 1506.. |
| Series | TangMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 14.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5512 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 25 |
| Insert Holding Method | Screw |
| Cutter Style | F90LN-N15 |
| Keyway Width (mm) | 25.70 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Complete Insert Compatibility | LNAR 1506 PN-N-P; LNHW 1506 PNTN; LNKX 1506 1.5X45PN-N; LNKX 150612-PNTN; LNKX 1506PN-N MM; LNKX 1506PN-N PL; LNKX 1506PNTN; LNMT 1506PN-N MM; LNMT 1506PNTN |
