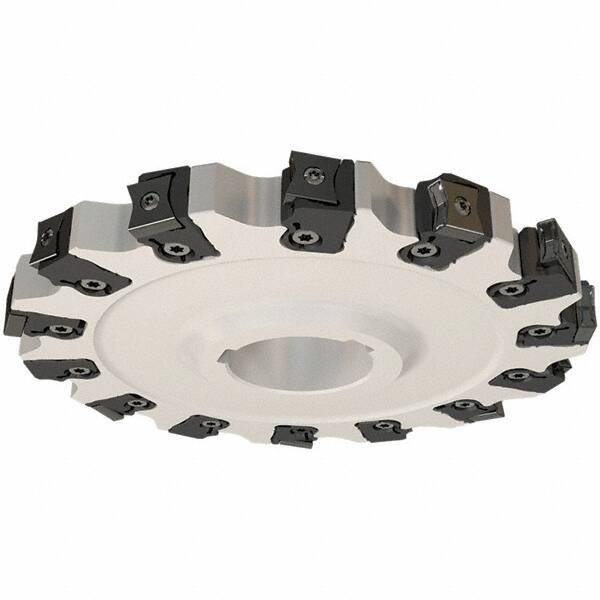

Iscar - Arbor Hole Connection, 0.7441" Cutting Width, 2.5591" Depth of Cut, 200mm Cutter Diam, 1.9685" Hole Diam, 14 Tooth Indexable Slotting Cutter
Item #: 30707384
Brand: Iscar
Model #: 3181190
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 18.90 |
| Cutting Width (Decimal Inch) | 0.7441 |
| Maximum Depth of Cut (mm) | 61.50 |
| Maximum Depth of Cut (Decimal Inch) | 2.5591 |
| Cutter Diameter (mm) | 200.00 |
| Cutter Diameter (Decimal Inch) | 7.8740 |
| Hole Diameter (mm) | 50.00 |
| Hole Diameter (Decimal Inch) | 1.9685 |
| Number of Teeth | 14 |
| Toolholder Style | SDN-CALN15 |
| Series | TangMill(SDN-CALN15) |
| Insert Style | LN.. 1506PN..; LN.T 1506..; LNHT 1506PN-N-HT-S; LNKX 1506PN-N PL; LNMW 1506 PNTN |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Screw |
| Maximum Cutting Width (Decimal Inch) | 1.0079 |
| Maximum Cutting Width (mm) | 25.60 |
| Hub Diameter (mm) | 70.00 |
| Hub Diameter (Decimal Inch) | 2.7559 |
| Radius | No |
| Complete Insert Compatibility1 | LNHT 1506PN-N-HT-S; LNHT 1506PNTN HT; LNKX 150612-PNTN; LNKX 1506PN-N MM; LNKX 1506PN-N PL; LNKX 1506PNTN; LNMT 1506PN-N HT; LNMT 1506PN-N MM; LNMT 1506PNTN; LNMT 1506PNTN-HT; LNMW 1506 PNTN |
