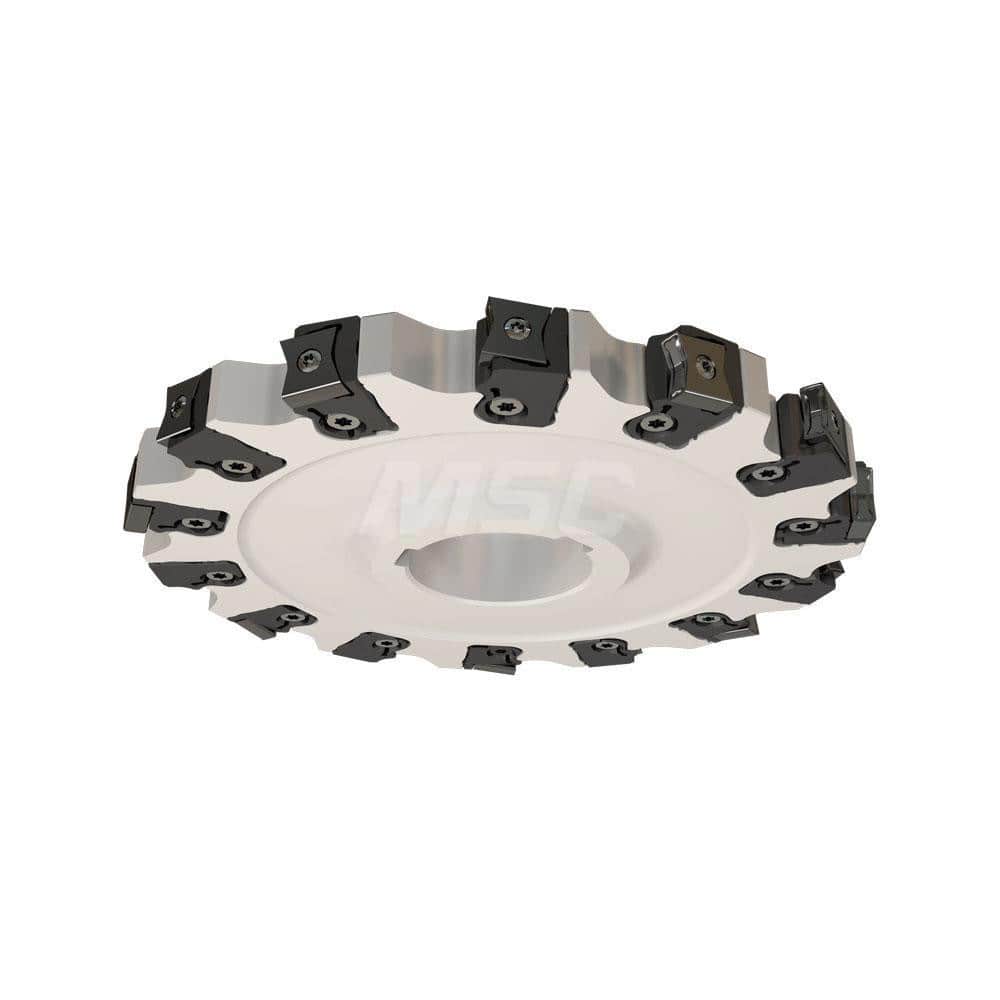

Indexable Slotting Cutter: 0.7441'' Cutting Width, 9.8425'' Cutter Dia, Arbor Hole Connection, 3.2283'' Depth of Cut, 2.3622'' Hole Screw, Uses 16 LN Inserts, 16 Teeth, Staggered
Item #: 30707392
Brand: Iscar
Model #: 3103767
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 18.90 |
| Cutting Width (Decimal Inch) | 0.7441 |
| Maximum Depth of Cut (Decimal Inch) | 3.2283 |
| Maximum Depth of Cut (mm) | 79.00 |
| Hole Diameter (Mm) ( - 0 Decimals) | 60.00 |
| Hole Diameter (Decimal Inch) | 2.3622 |
| Cutter Diameter (Decimal Inch) | 9.8425 |
| Cutter Diameter (mm) | 250.00 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 16 |
| Compatible Insert Style | LN |
| Compatible Insert Size Code | 1506 |
| Staggered Tooth | Yes |
| Tooth Type | Staggered |
| Series | TangMill (SDN-CALN15) |
| Toolholder Style | SDN-CALN15; SDN-CALN12 |
| Hub Diameter (Decimal Inch) | 3.3465 |
| Hub Diameter (mm) | 85.00 |
| Tool Application | Milling |
| Maximum Cutting Width (Decimal Inch) | 1.0079 |
| Maximum Cutting Width (mm) | 25.60 |
| Radius | No |
| Number Of Teeth | 16 |
| Complete Insert Compatibility | LNMW 1506 PNTN; LNHT 1506PN-N-HT-S; LNHT 1506PNTN HT; LNMT 1506PN-N HT; LNKX 1506PN-N PL; LNKX 150612-PNTN; LNMT 1506PN-N MM; LNMT 1506PNTN; LNKX 1506PN-N MM; LNKX 1506PNTN; LNMT 1506PNTN-HT |
