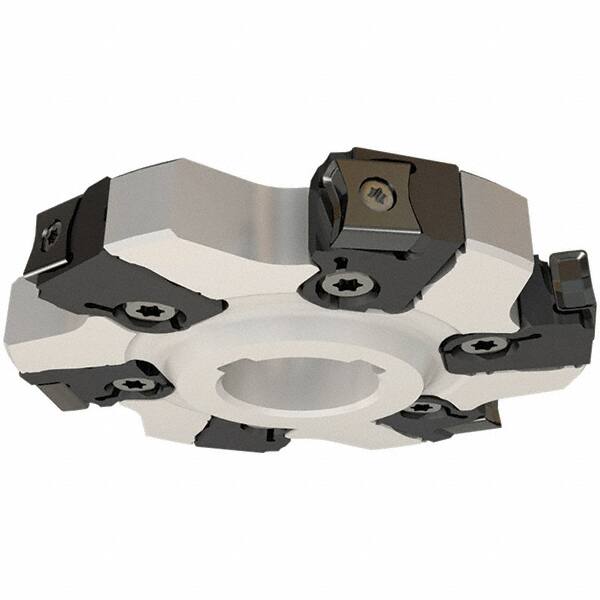

Iscar - Arbor Hole Connection, 0.5512" Cutting Width, 1.0551" Depth of Cut, 100mm Cutter Diam, 1-1/16" Hole Diam, 6 Tooth Indexable Slotting Cutter - SDN-CALN11 Toolholder, LN.. 1106, LNHT 1106 PN-N HT, LNHT 1106 PN-R HT Insert
Item #: 30707525
Brand: Iscar
Model #: 3105035
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 14.00 |
| Cutting Width (Decimal Inch) | 0.5512 |
| Maximum Depth of Cut (mm) | 26.80 |
| Maximum Depth of Cut (Decimal Inch) | 1.0551 |
| Cutter Diameter (mm) | 100.00 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Hole Diameter (mm) | 27.00 |
| Hole Diameter (Decimal Inch) | 1.0630 |
| Number of Teeth | 6 |
| Toolholder Style | SDN-CALN11 |
| Series | TangMill(SDN-CALN11) |
| Insert Style | LN.. 1106; LNHT 1106 PN-N HT; LNHT 1106 PN-R HT |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Maximum Cutting Width (Decimal Inch) | 0.7677 |
| Maximum Cutting Width (mm) | 19.50 |
| Hub Diameter (mm) | 42.00 |
| Hub Diameter (Decimal Inch) | 1.6535 |
| Radius | No |
| Complete Insert Compatibility1 | LNHT 1106PN-N HT; LNHT 1106PN-R HT; LNKX 1106PN-N MM; LNKX 1106PNTN MM; LNMT 1106PN-N MM |
