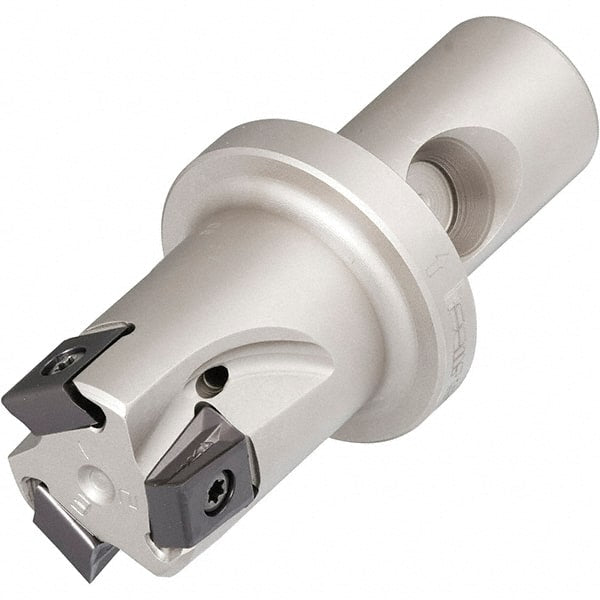

Iscar - 32mm Cut Diam, 12.5mm Max Depth of Cut, 32mm Shank Diam, 250mm OAL, Indexable Square Shoulder Helical End Mill - T490 LN.. Inserts, Cylindrical Shank, 0° Lead Angle, Through Coolant, Series Helitang
Item #: 30707574
Brand: Iscar
Model #: 3105310
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 250.00 |
| Overall Length/Projection (Decimal Inch) | 9.8425 |
| Lead Angle | 0 |
| Series | Helitang |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 12.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.4921 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | T490 ELN-13 |
| Head Length (mm) | 50.00 |
| Head Length (Decimal Inch) | 1.9685 |
| Weldon Flat | No |
| Insert Compatibility | T490 LN.. |
| Shank Length (Decimal Inch) | 7.8740 |
| Shank Length (mm) | 200.00 |
