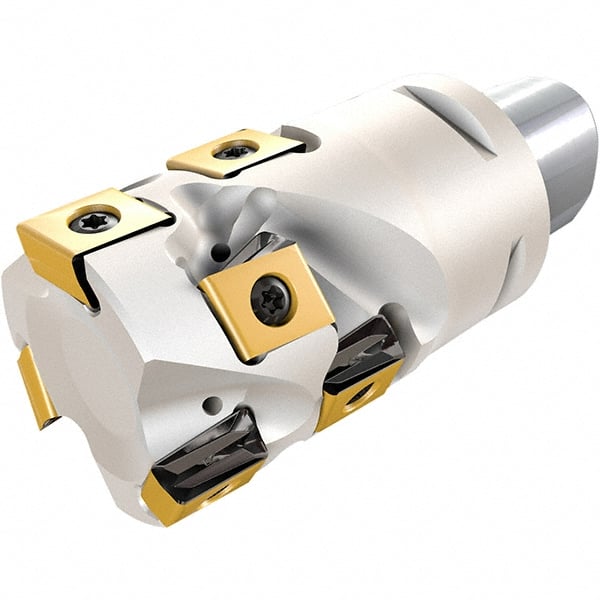

Iscar - 40mm Cut Diam, 12.5mm Max Depth of Cut, Indexable Square Shoulder Helical End Mill - T490 LN.. Inserts, C6 Modular Connection, 0° Lead Angle, Through Coolant, Series Helitang
Item #: 30707665
Brand: Iscar
Model #: 3105779
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Lead Angle | 0 |
| Series | Helitang |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 12.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.4921 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | T490 ELN-13-C |
| Head Length (mm) | 51.00 |
| Head Length (Decimal Inch) | 2.0079 |
| Weldon Flat | No |
| Insert Compatibility | T490 LN.. |
