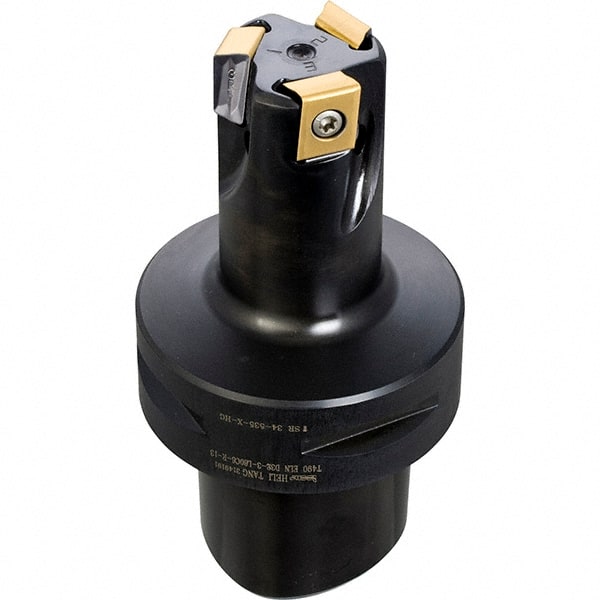

Iscar - 3 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 57mm High, HSM90S APCR 1405.. Insert Compatibility, Through Coolant, Series Helialu
Item #: 30707707
Brand: Iscar
Model #: 3105782
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 0 |
| Overall Height (mm) | 57.00 |
| Overall Height (Decimal Inch) | 2.2441 |
| Insert Compatibility | HSM90S APCR 1405.. |
| Series | Helialu |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Cutter Style | HSM90S FAL-14 |
| Hub Diameter (mm) | 47.00 |
| Hub Diameter (Decimal Inch) | 1.8504 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Maximum RPM | 33000 |
| Counterbore Diameter (Decimal Inch) | 0.7087 |
| Complete Insert Compatibility | HSM90S APCR 140508R-P; HSM90S APCR 140516R-P; HSM90S APCR 140520R-P; HSM90S APCR 140530R-P; HSM90S APCR 140532R-P |
