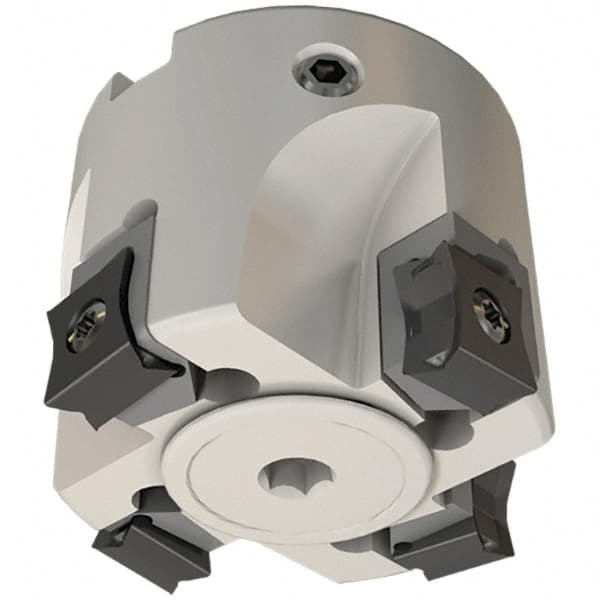

Iscar - 14 Inserts, 160mm Cut Diam, 40mm Arbor Diam, 5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 63mm High, LN.. 1106.. Insert Compatibility, Through Coolant, Series AluTang
Item #: 30707723
Brand: Iscar
Model #: 3105799
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160.00 |
| Cutting Diameter (Decimal Inch) | 6.2992 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 0 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | LN.. 1106.. |
| Series | AluTang |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Screw |
| Cutter Style | F90LN-FR CA11 |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Maximum RPM | 12200 |
| Counterbore Diameter (Decimal Inch) | 2.6260 |
| Complete Insert Compatibility | LNAR 1106 PN-N; LNAR 1106 PN-N-P; LNAR 110604PN-R-S; LNAR 110604X45PN-R-S; LNAR 110620X75PN-R-S; LNHT 1106PN-N HT; LNHT 1106PN-R HT; LNKX 1106PN-N MM; LNKX 1106PNTN MM; LNMT 1106PN-N MM |
