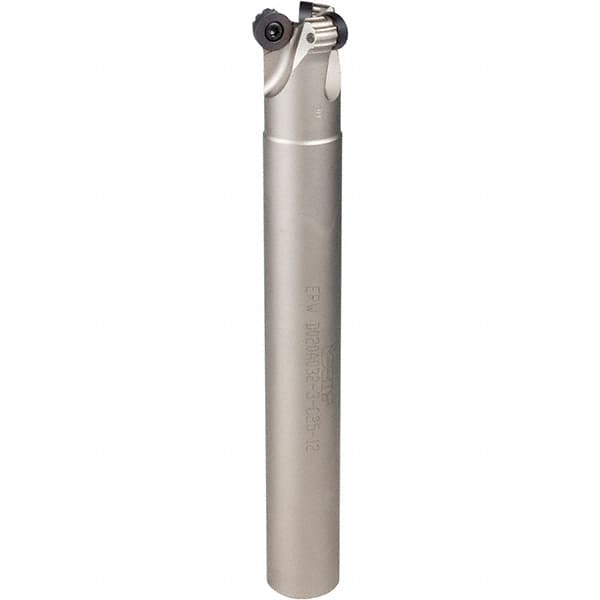

Iscar - 40mm Cutting Diam, 32mm Shank Diam, 10mm Max Depth of Cut, Straight Shank Indexable Copy End Mill - 5 Inserts, RCMT/RCCT-MO, RCMT/RCMW/RCCW-FW, RCMW/RCCW-MO Insert, ERW Toolholder, Through Coolant
Item #: 30707913
Brand: Iscar
Model #: 3106283
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 10.00 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Number of Cutter Inserts | 5 |
| Insert Style | RCMT/RCCT-MO; RCMT/RCMW/RCCW-FW; RCMW/RCCW-MO |
| Toolholder Style | ERW |
| Series | MillShred |
| Overall Length (mm) | 200.00 |
| Insert Diameter (mm) | 10.00 |
| Insert Diameter (Decimal Inch) | 0.3937 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Minimum Cutting Diameter (mm) | 30.00 |
| Minimum Cutting Diameter (Decimal Inch) | 1.1811 |
