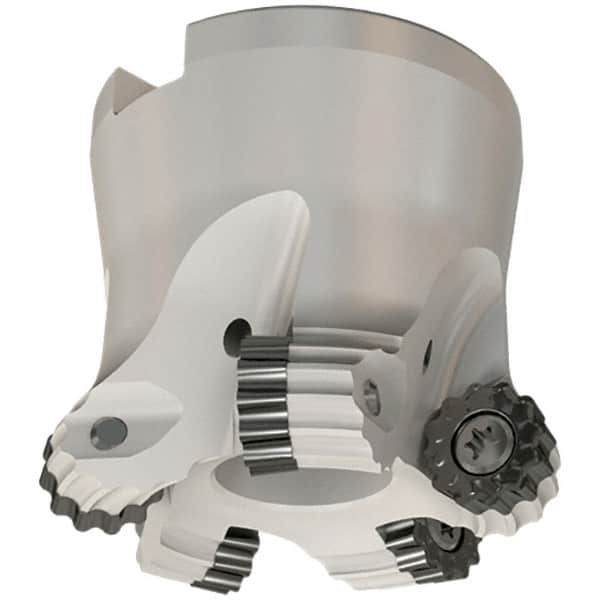

Iscar - 40.01mm Cut Diam, 5mm Max Depth, 16mm Arbor Hole, 5 Inserts, RC.. 1.., RC.. 2.. Insert Style, Indexable Copy Face Mill - FRW Cutter Style, 35mm High, Through Coolant, Series MillShred
Item #: 30707939
Brand: Iscar
Model #: 3106285
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.01 |
| Cutting Diameter (Decimal Inch) | 1.5750 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6300 |
| Overall Height (mm) | 35.00 |
| Overall Height (Decimal Inch) | 1.3780 |
| Series | MillShred |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | RC.. 1..; RC.. 2.. |
| Cutter Style | FRW |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Insert Inscribed Circle (mm) | 10.01 |
| Insert Inscribed Circle (Decimal Inch) | 0.3940 |
| Keyway Width (Decimal Inch) | 0.3307 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 0.5315 |
| Complete Insert Compatibility | RCCT 1004MO; RCCT 1206MO; RCCW 1206MO; RCMT 1004-FW; RCMT 1004-FW-F20; RCMT 1206-FW; RCMT 1206-FW-F20; RCMT 1206-FW-T20; RCMT 1607MO; RCMT 2009MO; RCMW 1607MO; RCMW 2009MO |
