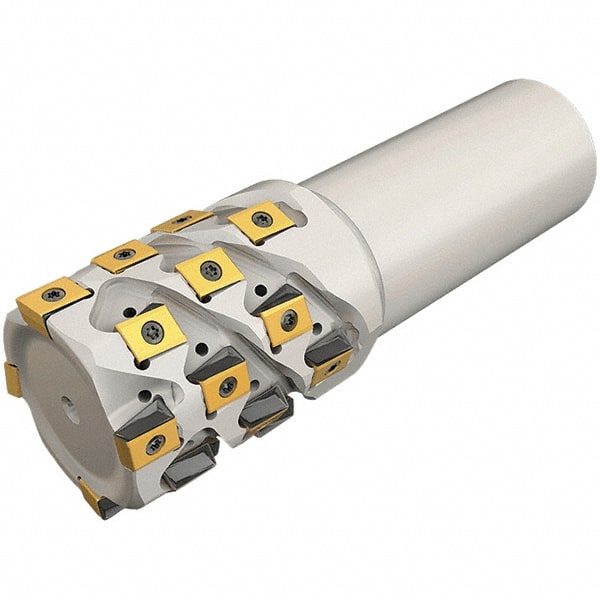

Iscar - 25mm Cut Diam, 30mm Max Depth of Cut, 25mm Shank Diam, 100mm OAL, Indexable Square Shoulder End Mill - T490 LN.. Inserts, Cylindrical Shank, 0° Lead Angle, Through Coolant, Series Helitang
Item #: 30707988
Brand: Iscar
Model #: 3106287
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length/Projection (mm) | 100.00 |
| Overall Length/Projection (Decimal Inch) | 3.9370 |
| Lead Angle | 0 |
| Series | Helitang |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 30.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.1811 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | T490 LNM-08 |
| Number of Flutes | 2 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Weldon Flat | No |
| Insert Compatibility | T490 LN.. |
| Shank Length (Decimal Inch) | 2.3622 |
| Shank Length (mm) | 60.00 |
