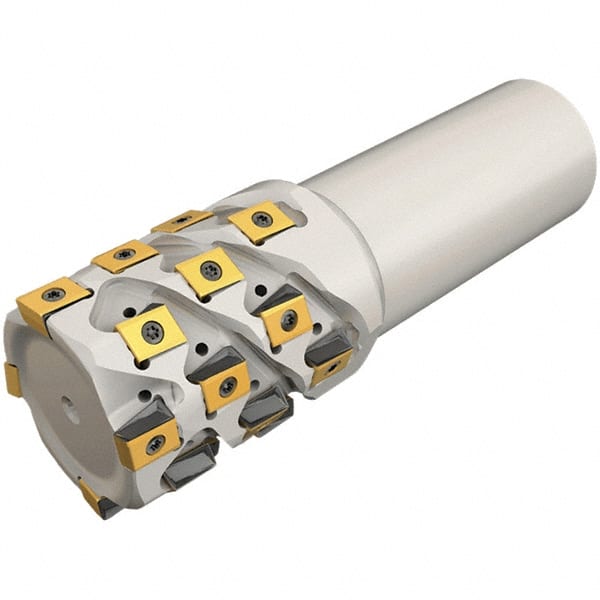

Iscar - 40mm Cut Diam, 44mm Max Depth of Cut, 32mm Shank Diam, 120mm OAL, Indexable Square Shoulder End Mill - T490 LN.. Inserts, Weldon Shank, 0° Lead Angle, Through Coolant, Series Helitang
Item #: 30707996
Brand: Iscar
Model #: 3106289
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 120.00 |
| Overall Length/Projection (Decimal Inch) | 4.7244 |
| Lead Angle | 0 |
| Series | Helitang |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 44.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.7323 |
| Number of Cutter Inserts | 24 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | T490 LNM-08 |
| Number of Flutes | 4 |
| Head Length (mm) | 53.00 |
| Head Length (Decimal Inch) | 2.0866 |
| Weldon Flat | Yes |
| Insert Compatibility | T490 LN.. |
| Shank Length (Decimal Inch) | 2.6378 |
| Shank Length (mm) | 67.00 |
