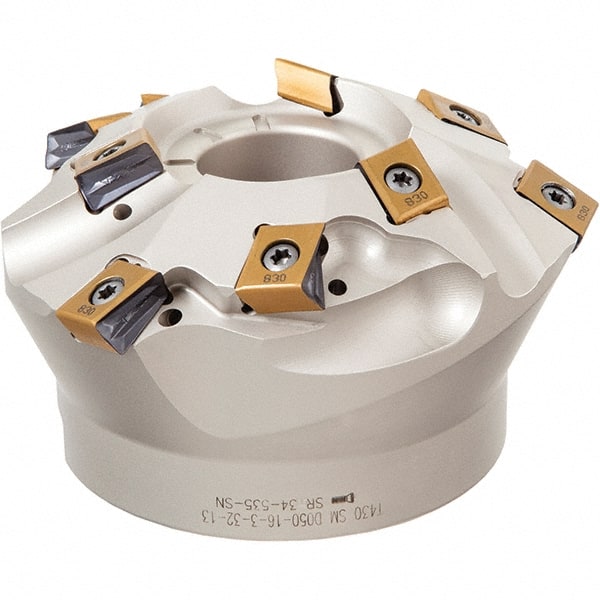

Iscar - 67, 73.2, 76.5, 80, 83.1mm Cut Diam, 25.4mm Arbor Hole, 10mm Max Depth of Cut, 15° Indexable Chamfer & Angle Face Mill - 7 Inserts, OXMT 050..\xB6S890 SNMU 130.. Insert, Right Hand Cut, Through Coolant, Series FeedMill, Helido
Item #: 30708028
Brand: Iscar
Model #: 3106328
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 67.00; 73.20; 76.50; 80.00; 83.10 |
| Cutting Diameter (Decimal Inch) | 2.6378; 2.8819; 3.0118; 3.1496; 3.2717 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 15 |
| Overall Height (Decimal Inch) | 2.0157 |
| Overall Height (mm) | 51.20 |
| Insert Compatibility | OXMT 050..; S890 SNMU 130.. |
| Series | FeedMill, Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | S890 FSN-13 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | OXMT 050705-R-HP; OXMT 0507R08-FF; S890 SNHU 1305PN-R-W; S890 SNMU 1305PNR-MM; S890 SNMU 1305PNTN; S890 SNMU 1305PNTR |
