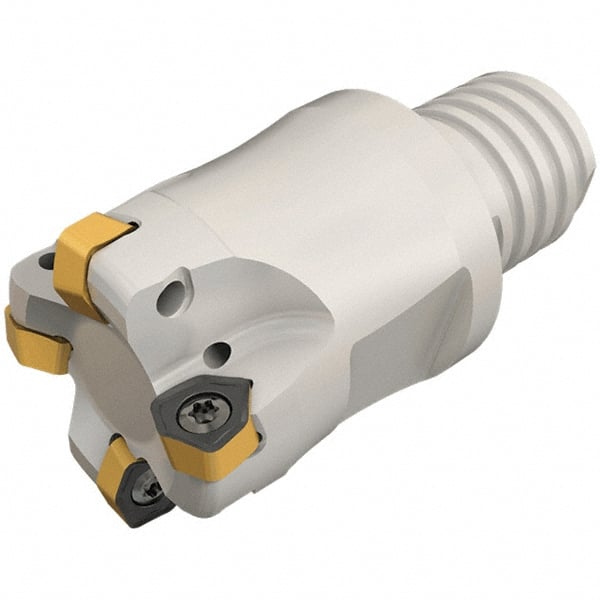

Iscar - 25mm Cut Diam, 0.031" Max Depth, T15 Modular Connection Indexable High-Feed End Mill - Screw Holding Method, H600 WXCU Insert, FF EWX-MM Toolholder, Through Coolant
Item #: 30708036
Brand: Iscar
Model #: 3106376
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9840 |
| Maximum Depth of Cut (Decimal Inch) | 0.0310 |
| Shank Type | Modular Connection |
| Modular Connection Size | T15 |
| Number of Cutter Inserts | 4 |
| Insert Style | H600 WXCU |
| Toolholder Style | FF EWX-MM |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | End Mill |
| Minimum Cutting Diameter (Decimal Inch) | 0.6930 |
| Through Coolant | Through Coolant |
