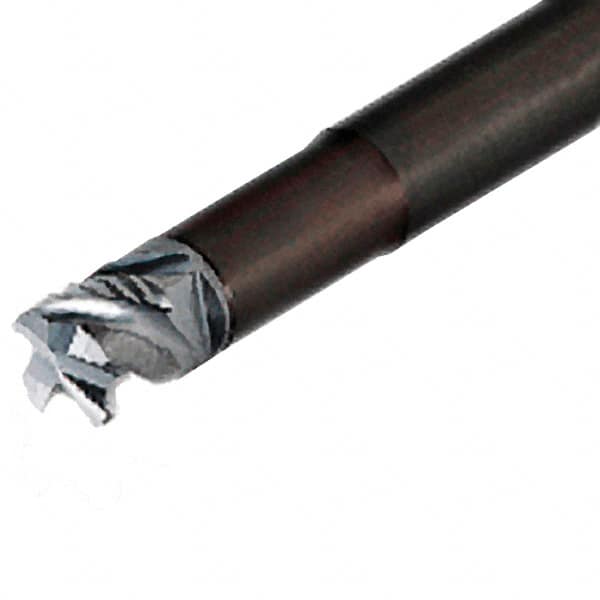

Iscar - Multimaster 3/4" Stepped Shank Milling Tip Insert Holder & Shank - 0.72" Neck Diam, T12 Neck Thread, 6.7" OAL, Carbide MM S-A Tool Holder
Item #: 30708044
Brand: Iscar
Model #: 3106361
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | Stepped Shank |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Neck Diameter (Decimal Inch) | 0.7200 |
| Neck Thread Size | T12 |
| Toolholder Material | Carbide |
| Overall Length (Decimal Inch) | 6.7000 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 3.8620 |
| Effective Length (Decimal Inch) | 3.9370 |
| Milling Tip Style | MM EA; MM EA-CF; MM EB; MM EBA; MM EC-4; MM EC-8/MM EC-10; MM EC-CF; MM EC-D; MM EC-H; MM ECF; MM ECS; MM ECU; MM EFF; MM EFS; MM EFS-CF; MM ERA; MM ERS; MM FF; MM HBR; MM HCD; MM HR; MM HT; MM TS-DG |
| Shank Shape | Straight |
| Toolholder Style | MM S-A |
