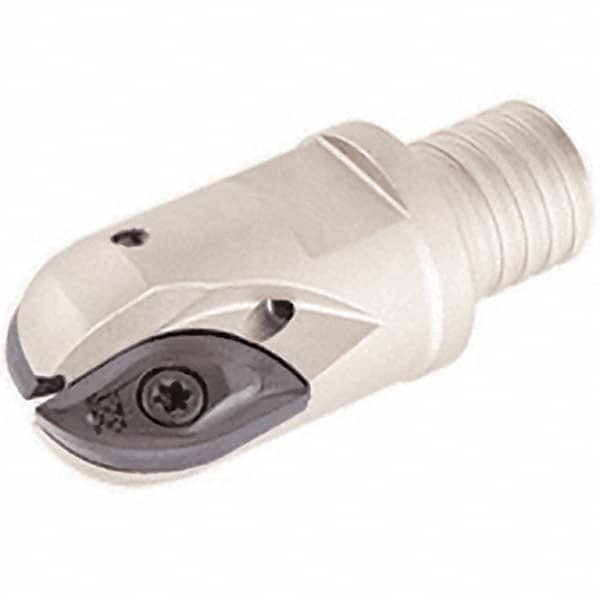

Iscar - 25mm Cut Diam, 20mm Max Depth of Cut, 57mm OAL, Indexable Ball Nose End Mill - 40mm Head Length, T15 Modular Connection, BCM-MM Toolholder, BCR Insert
Item #: 30708069
Brand: Iscar
Model #: 3106371
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | T15 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | BCR |
| Toolholder Style | BCM-MM |
| Series | DropMill; Multimaster |
| Overall Length (mm) | 57.00 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
