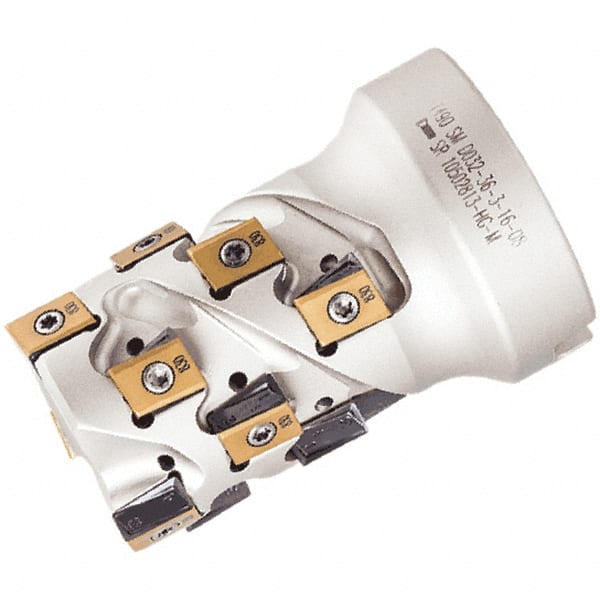

Iscar - 15 Inserts, 32mm Cut Diam, 16mm Arbor Diam, 36mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 58mm High, T490 LN.. Insert Compatibility, Through Coolant, Series Helitang
Item #: 30708143
Brand: Iscar
Model #: 3106409
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Lead Angle | 0 |
| Overall Height (mm) | 58.00 |
| Overall Height (Decimal Inch) | 2.2835 |
| Insert Compatibility | T490 LN.. |
| Series | Helitang |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 36.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.4173 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 15 |
| Insert Holding Method | Screw |
| Cutter Style | T490 SM-08 |
| Number of Flutes | 3 |
| Hub Diameter (mm) | 38.00 |
| Hub Diameter (Decimal Inch) | 1.4961 |
| Keyway Width (mm) | 8.40 |
| Keyway Width (Decimal Inch) | 0.3307 |
| Counterbore Diameter (Decimal Inch) | 0.5315 |
| Complete Insert Compatibility | T490 LNHT 080404PNR; T490 LNHT 080408PNR; T490 LNHT 080412PNR; T490 LNMT 080408PNR; T490 LNMT 0804PNR |
