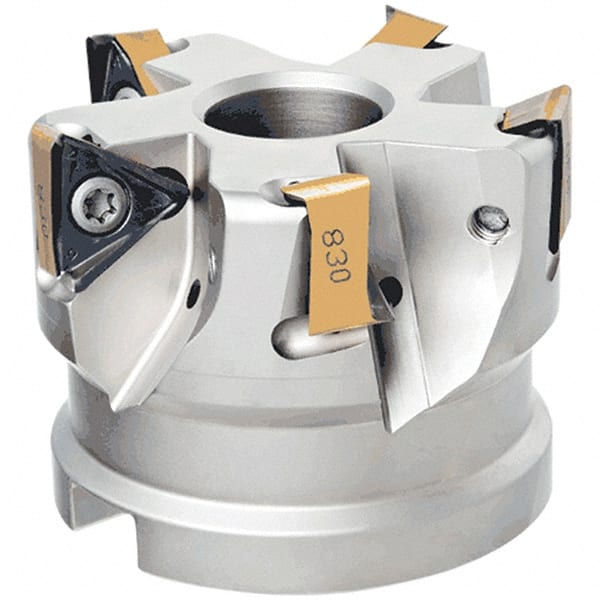

Iscar - 5 Inserts, 80mm Cut Diam, 27mm Arbor Diam, 13.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 50mm High, H690 TNKX 160610PNTR Insert Compatibility, Through Coolant, Series Helido
Item #: 30708226
Brand: Iscar
Model #: 3106387
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Lead Angle | 0 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | H690 TNKX 160610PNTR |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 13.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.5315 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | H690 F90AX |
| Hub Diameter (mm) | 76.00 |
| Hub Diameter (Decimal Inch) | 2.9921 |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Counterbore Diameter (Decimal Inch) | 1.4961 |
| Complete Insert Compatibility | H690 TNKX 160610PNTR |
