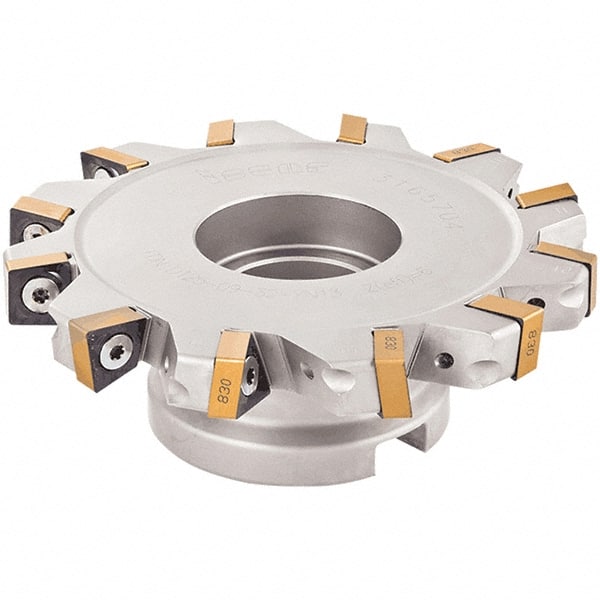

Iscar - Shell Mount B Connection, 0.7087" Cutting Width, 1.7717" Depth of Cut, 160mm Cutter Diam, 1.5748" Hole Diam, 14 Tooth Indexable Slotting Cutter - FDN-XN13 Toolholder, XNMU 13 Insert
Item #: 30708291
Brand: Iscar
Model #: 3106539
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount B |
| Cutting Width (mm) | 18.00 |
| Cutting Width (Decimal Inch) | 0.7087 |
| Maximum Depth of Cut (mm) | 45.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.7717 |
| Cutter Diameter (mm) | 160.00 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 14 |
| Toolholder Style | FDN-XN13 |
| Series | Helislot(FDN-XN13) |
| Insert Style | XNMU 13 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 80.00 |
| Hub Diameter (Decimal Inch) | 3.1496 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Keyway Width (mm) | 16.40 |
| Radius | No |
| Complete Insert Compatibility1 | XNMU 130608PNN-MM |
