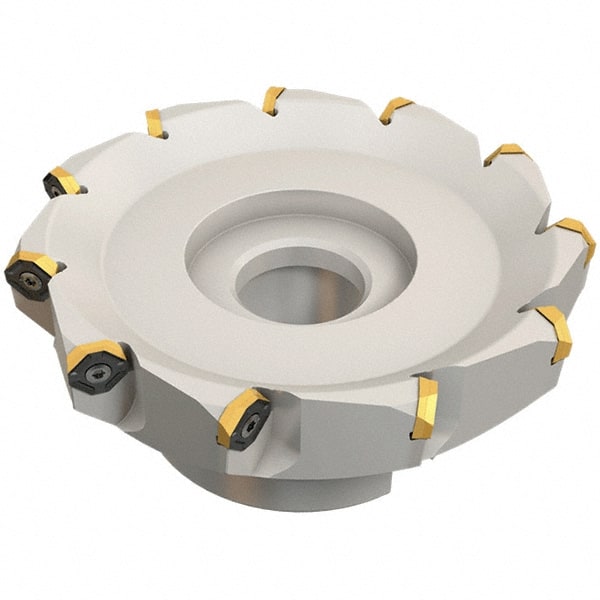

Iscar - 169.4mm Cut Diam, 40mm Arbor Hole, 4.6mm Max Depth of Cut, 50° Indexable Chamfer & Angle Face Mill - 15 Inserts, IQ845 SYHU 07.. Insert, Right Hand Cut, Series DoveIQMill
Item #: 30708366
Brand: Iscar
Model #: 3106533
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 169.40 |
| Cutting Diameter (Decimal Inch) | 6.6693 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 50 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | IQ845 SYHU 07.. |
| Series | DoveIQMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 4.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.1811 |
| Number of Cutter Inserts | 15 |
| Insert Holding Method | Screw |
| Cutter Style | IQ845 FSY-R07 |
| Hub Diameter (Decimal Inch) | 3.6220 |
| Hub Diameter (mm) | 92.00 |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.0315 |
| Counterbore Diameter (Decimal Inch) | 2.6260 |
| Complete Insert Compatibility | IQ845 SYHU 070400ADN; IQ845 SYHU 070400N-MM; IQ845 SYHU 0704ADN; IQ845 SYHU 0704ADN-MM; IQ845 SYHU 0704ADTN |
