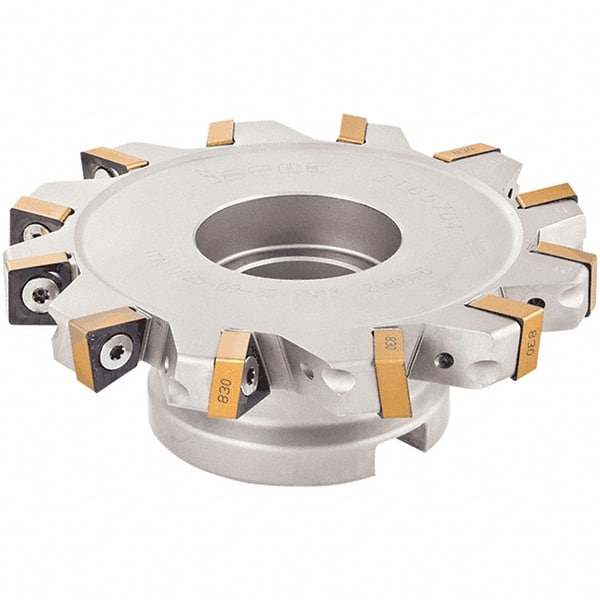

Iscar - Shell Mount B Connection, 0.6299" Cutting Width, 1.2992" Depth of Cut, 125mm Cutter Diam, 1.2598" Hole Diam, 12 Tooth Indexable Slotting Cutter - FDN-XN13 Toolholder, XNMU 13 Insert
Item #: 30708374
Brand: Iscar
Model #: 3106538
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount B |
| Cutting Width (mm) | 16.00 |
| Cutting Width (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (mm) | 33.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.2992 |
| Cutter Diameter (mm) | 125.00 |
| Cutter Diameter (Decimal Inch) | 4.9213 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Number of Teeth | 12 |
| Toolholder Style | FDN-XN13 |
| Series | Helislot(FDN-XN13) |
| Insert Style | XNMU 13 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 65.00 |
| Hub Diameter (Decimal Inch) | 2.5591 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Keyway Width (mm) | 14.40 |
| Radius | No |
| Complete Insert Compatibility1 | XNMU 130608PNN-MM |
