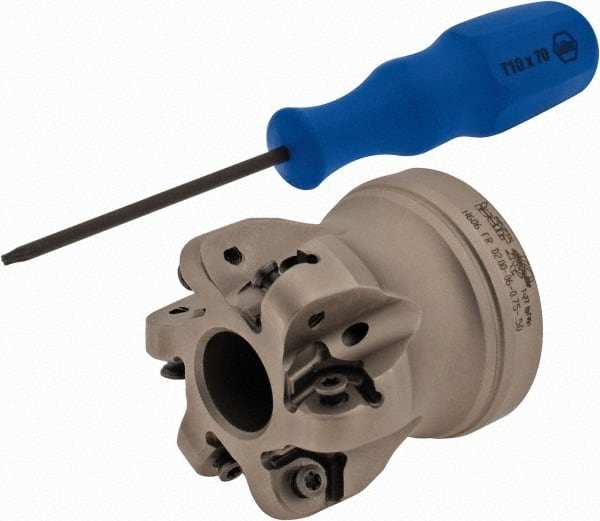

Iscar - 2" Cut Diam, 1/4" Max Depth, 3/4" Arbor Hole, 6 Inserts, H606 RXCU 43-AX.. Insert Style, Indexable Copy Face Mill - H606 FR-.50 Cutter Style, 2" High, Series Helido
Item #: 30708408
Brand: Iscar
Model #: 3106609
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (Decimal Inch) | 2.0000 |
| Series | Helido |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | H606 RXCU 43-AX.. |
| Cutter Style | H606 FR-.50 |
| Through Coolant | No |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.7720 |
| Keyway Width (Decimal Inch) | 0.3120 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 0.6300 |
| Complete Insert Compatibility | H606 RXCU 43-AXMP; H606 RXCU 43-AXT |
