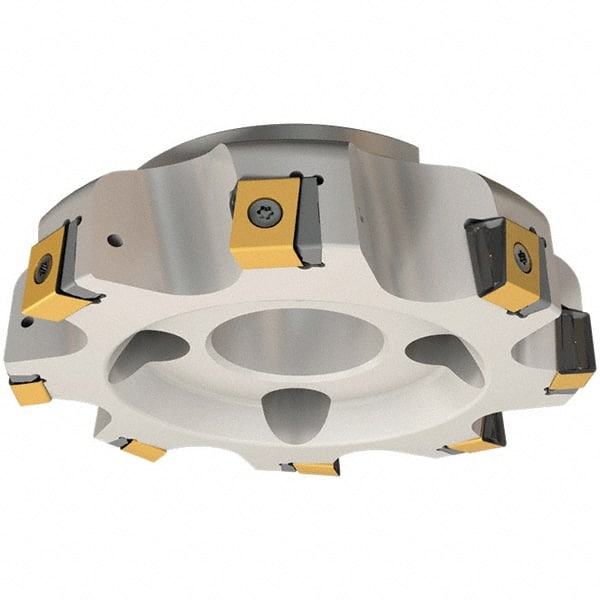

Iscar - 7 Inserts, 160mm Cut Diam, 40mm Arbor Diam, 21mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 63mm High, T490 LNHT 2212-PNTR Insert Compatibility, Through Coolant, Series Helitang
Item #: 30708564
Brand: Iscar
Model #: 3106730
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160.00 |
| Cutting Diameter (Decimal Inch) | 6.2992 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 0 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | T490 LNHT 2212-PNTR |
| Series | Helitang |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 21.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.8268 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | T490 FLN-22ST |
| Hub Diameter (mm) | 120.00 |
| Hub Diameter (Decimal Inch) | 4.7244 |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Counterbore Diameter (Decimal Inch) | 2.6260 |
| Complete Insert Compatibility | T490 LNHT 2212-PNTR |
