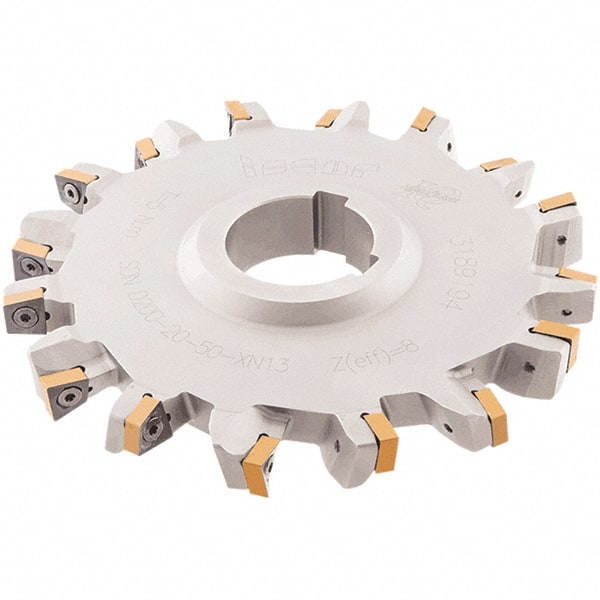

Iscar - Arbor Hole Connection, 0.6299" Cutting Width, 1.2992" Depth of Cut, 125mm Cutter Diam, 1.5748" Hole Diam, 12 Tooth Indexable Slotting Cutter - SDN-XN13 Toolholder, XNMU 13 Insert
Item #: 30708655
Brand: Iscar
Model #: 3106755
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 16.00 |
| Cutting Width (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (mm) | 33.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.2992 |
| Cutter Diameter (mm) | 125.00 |
| Cutter Diameter (Decimal Inch) | 4.9213 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 12 |
| Toolholder Style | SDN-XN13 |
| Series | Helislot(SDN-XN13) |
| Insert Style | XNMU 13 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 55.00 |
| Hub Diameter (Decimal Inch) | 2.1654 |
| Radius | No |
| Complete Insert Compatibility1 | XNMU 130608PNN-MM |
