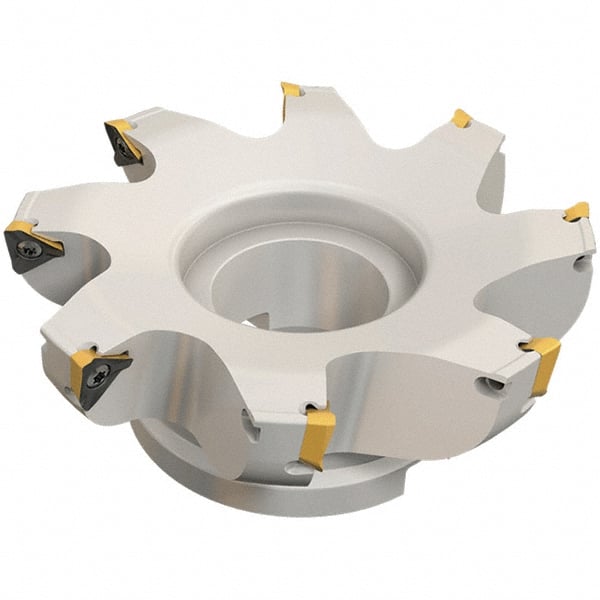

Iscar - 8 Inserts, 160mm Cut Diam, 50.8mm Arbor Diam, 13mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 63mm High, HM390 TDKT 1505.. Insert Compatibility, Series HeliIQMill
Item #: 30708739
Brand: Iscar
Model #: 3106781
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160.00 |
| Cutting Diameter (Decimal Inch) | 6.2992 |
| Arbor Hole Diameter (mm) | 50.80 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
| Lead Angle | 0 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | HM390 TDKT 1505.. |
| Series | HeliIQMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | HM390 FTD-15 |
| Hub Diameter (mm) | 105.00 |
| Hub Diameter (Decimal Inch) | 4.1339 |
| Complete Insert Compatibility | HM390 TDKT 150516-PDR; HM390 TDKT 150524PDR; HM390 TDKT 150532PDR; HM390 TDKT 1505PDR |
