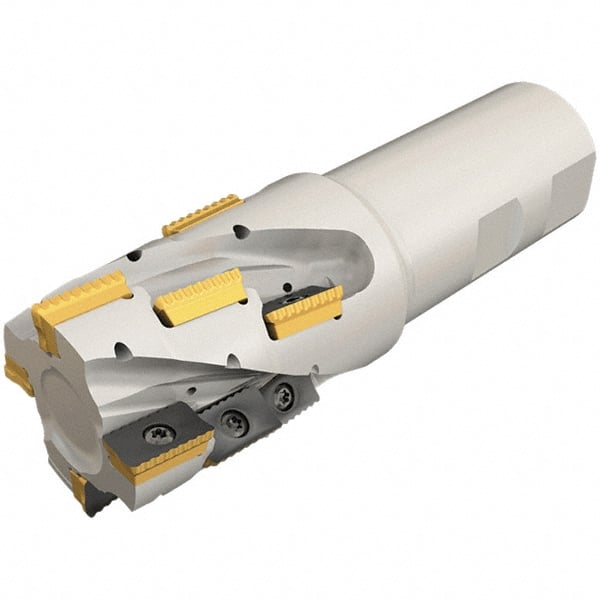

Iscar - 50mm Cut Diam, 160mm Max Depth of Cut, 50mm Shank Diam, 265mm OAL, Indexable Square Shoulder End Mill - P290 AC.T 1806.. Inserts, Weldon Shank, 0° Lead Angle, Through Coolant, Series MillShred
Item #: 30709000
Brand: Iscar
Model #: 3110779
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Overall Length/Projection (mm) | 265.00 |
| Overall Length/Projection (Decimal Inch) | 10.4331 |
| Lead Angle | 0 |
| Series | MillShred |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 160.00 |
| Maximum Depth of Cut (Decimal Inch) | 6.2992 |
| Number of Cutter Inserts | 27 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | P290 ACK-18 |
| Number of Flutes | 3 |
| Head Length (mm) | 185.00 |
| Head Length (Decimal Inch) | 7.2835 |
| Weldon Flat | Yes |
| Insert Compatibility | P290 AC.T 1806.. |
| Shank Length (Decimal Inch) | 3.1496 |
| Shank Length (mm) | 80.00 |
