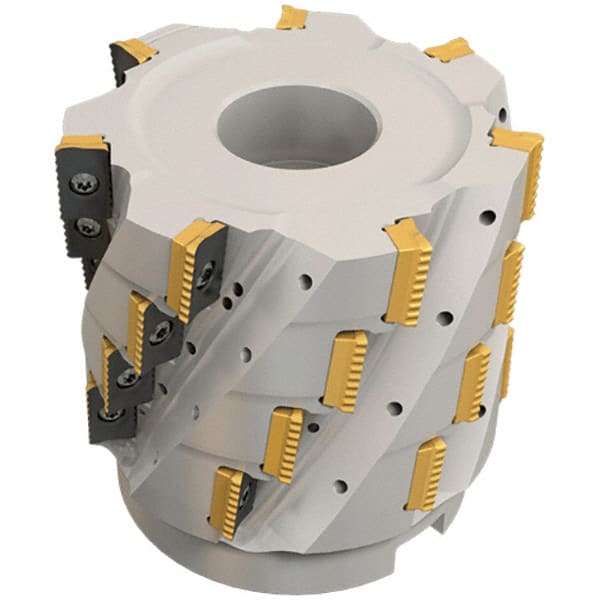

Iscar - 12 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 53mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 80mm High, P290 AC.T 1806.. Insert Compatibility, Through Coolant, Series MillShred
Item #: 30709026
Brand: Iscar
Model #: 3110781
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 0 |
| Overall Height (mm) | 80.00 |
| Overall Height (Decimal Inch) | 3.1496 |
| Insert Compatibility | P290 AC.T 1806.. |
| Series | MillShred |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 53.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.0866 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Cutter Style | P290 SM |
| Number of Flutes | 4 |
| Hub Diameter (mm) | 46.40 |
| Hub Diameter (Decimal Inch) | 1.8268 |
| Complete Insert Compatibility | P290 ACCT 1806PDR-HL; P290 ACKT 1806PDR-FW; P290 ACKT 1806PDR-FWE; P290 ACKT 1806PDR-FWR |
