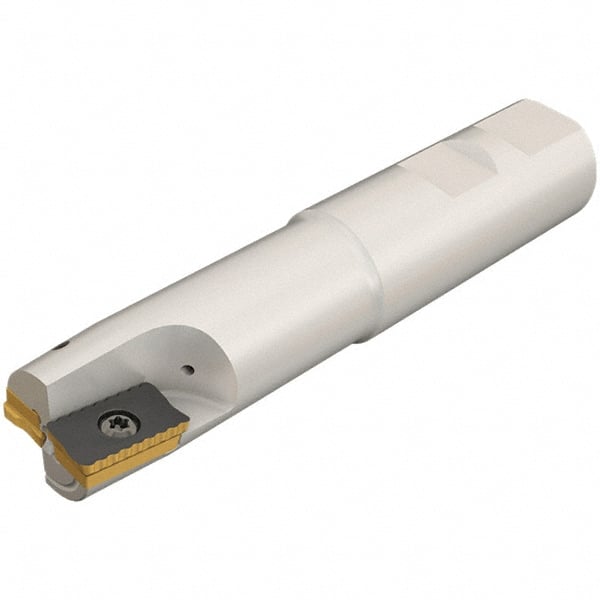

Iscar - 40mm Cut Diam, 18mm Max Depth of Cut, 40mm Shank Diam, 250mm OAL, Indexable Square Shoulder End Mill - P290 AC.T 1806.. Inserts, Weldon Shank, 0° Lead Angle, Through Coolant, Series MillShred
Item #: 30709166
Brand: Iscar
Model #: 3110794
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Overall Length/Projection (mm) | 250.00 |
| Overall Length/Projection (Decimal Inch) | 9.8425 |
| Lead Angle | 0 |
| Series | MillShred |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | P290 EPW |
| Head Length (mm) | 150.00 |
| Head Length (Decimal Inch) | 5.9055 |
| Weldon Flat | Yes |
| Insert Compatibility | P290 AC.T 1806.. |
| Shank Length (Decimal Inch) | 3.9370 |
| Shank Length (mm) | 100.00 |
