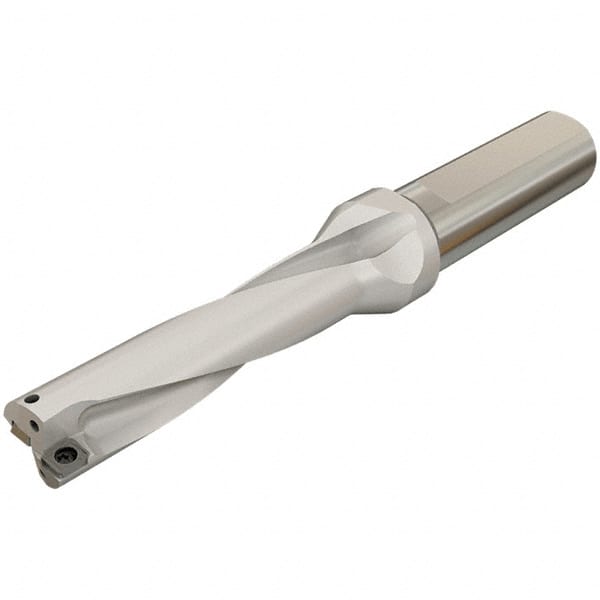

Iscar - 184mm Max Drill Depth, 4xD, 46mm Diam, Indexable Insert Drill - 40mm Shank Diam, Whistle Notch Shank
Item #: 30709349
Brand: Iscar
Model #: 3201478
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (mm) | 46.00 |
| Drill Diameter (Decimal Inch) | 1.8110 |
| Maximum Drill Depth (mm) | 184.00 |
| Maximum Drill Depth (Decimal Inch) | 7.2441 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Maximum Drill Diameter (Decimal Inch) | 2.0276 |
| Maximum Drill Diameter (mm) | 51.50 |
| Overall Length/Projection (mm) | 287.00 |
| Overall Length/Projection (Decimal Inch) | 11.2992 |
| Insert Compatibility | SOMT-DT; SOMT-GF; SOMT-HD; SOMX-DT |
| Body Length (Decimal Inch) | 8.6220 |
| Body Length (mm) | 219.00 |
| Shank Length (mm) | 68.00 |
| Shank Length (Decimal Inch) | 2.6772 |
| Collar Diameter (mm) | 60.00 |
| Collar Diameter (Decimal Inch) | 2.3622 |
| Series | DR-TWIST |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | 3/4-14 |
