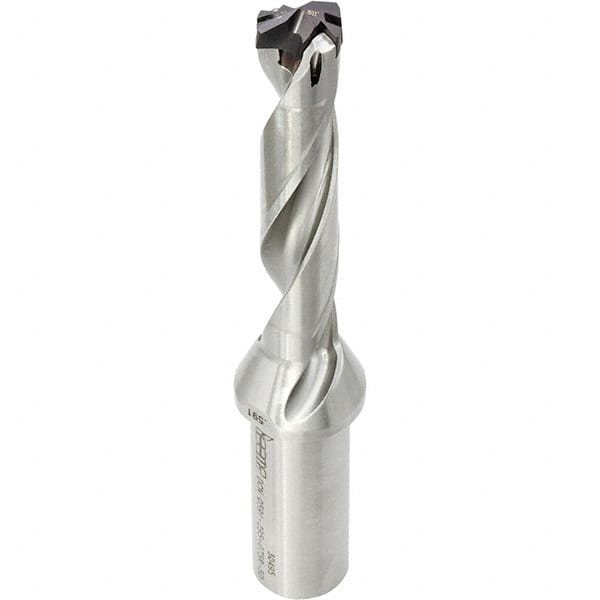

Iscar - 1-1/16 to 1.098" Diam, 3xD, 3.19" Max Depth, 1-1/2" Shank Diam, 7.57" OAL, Replaceable Tip Drill - ICK, ICM, ICP Insert, 27 Seat Size, DCN Toolholder, Series SumoCham
Item #: 30709372
Brand: Iscar
Model #: 3260105
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 1.0630 |
| Maximum Drill Diameter (Decimal Inch) | 1.0980 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 3.1900 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Style | ICK; ICM; ICP |
| Insert Seat Size | 27 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 4.8900 |
| Overall Length (Decimal Inch) | 7.5700 |
| Shank Length (Decimal Inch) | 2.6800 |
