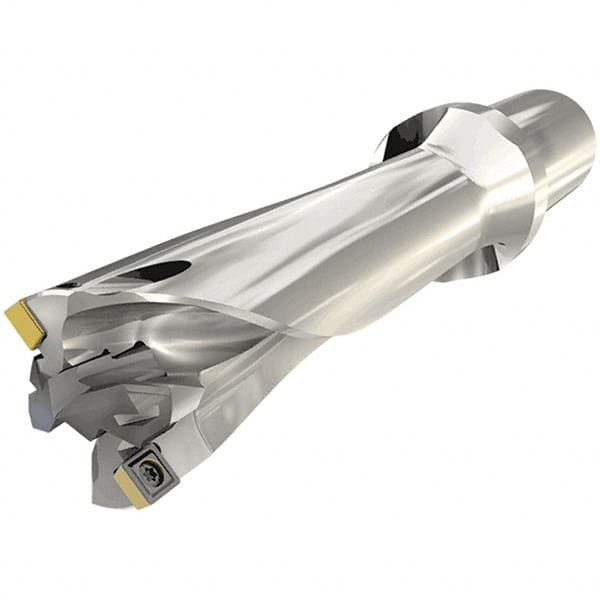

Iscar - 19 to 36mm Diam, 5xD, 180mm Max Depth, 32mm Shank Diam, 279.3mm OAL, Replaceable Tip Drill - ICP, SOGT-W Insert, MNC Toolholder, Series Combicham
Item #: 30709414
Brand: Iscar
Model #: 3202871
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | CombiCham |
| Minimum Drill Diameter (mm) | 19.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7480 |
| Maximum Drill Diameter (mm) | 36.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.4173 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 7.0866 |
| Maximum Drill Depth (mm) | 180.00 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Style | ICP; SOGT-W |
| Toolholder Style | MNC |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 3.85 |
| Tip Length (Decimal Inch) | 0.1516 |
| Body Length (mm) | 219.30 |
| Body Length (Decimal Inch) | 8.6338 |
| Overall Length (mm) | 279.30 |
| Overall Length (Decimal Inch) | 10.9961 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
