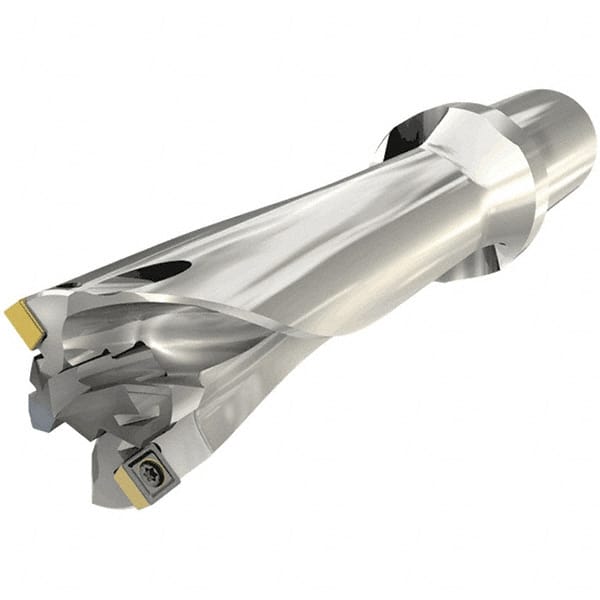

Iscar - 15 to 26mm Diam, 5xD, 130mm Max Depth, 32mm Shank Diam, 227.3mm OAL, Replaceable Tip Drill - ICP, SOGX-W Insert, MNC Toolholder, Series Combicham
Item #: 30709430
Brand: Iscar
Model #: 3202861
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | CombiCham |
| Minimum Drill Diameter (mm) | 15.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5906 |
| Maximum Drill Diameter (mm) | 26.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.0236 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 5.1181 |
| Maximum Drill Depth (mm) | 130.00 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Style | ICP; SOGX-W |
| Toolholder Style | MNC |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 2.95 |
| Tip Length (Decimal Inch) | 0.1161 |
| Body Length (mm) | 167.30 |
| Body Length (Decimal Inch) | 6.5866 |
| Overall Length (mm) | 227.30 |
| Overall Length (Decimal Inch) | 8.9488 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
