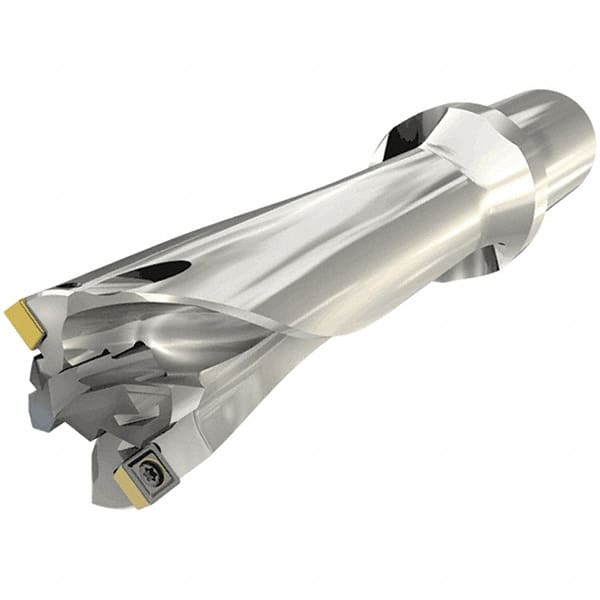

Iscar - 17.5 to 33mm Diam, 5xD, 165mm Max Depth, 32mm Shank Diam, 267.6mm OAL, Replaceable Tip Drill - ICP, SOGT-W Insert, MNC Toolholder, Series Combicham
Item #: 30709471
Brand: Iscar
Model #: 3202868
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | CombiCham |
| Minimum Drill Diameter (mm) | 17.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.6890 |
| Maximum Drill Diameter (mm) | 33.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.2992 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 6.4961 |
| Maximum Drill Depth (mm) | 165.00 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Style | ICP; SOGT-W |
| Toolholder Style | MNC |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 3.65 |
| Tip Length (Decimal Inch) | 0.1437 |
| Body Length (mm) | 203.60 |
| Body Length (Decimal Inch) | 8.0157 |
| Overall Length (mm) | 267.60 |
| Overall Length (Decimal Inch) | 10.5354 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
